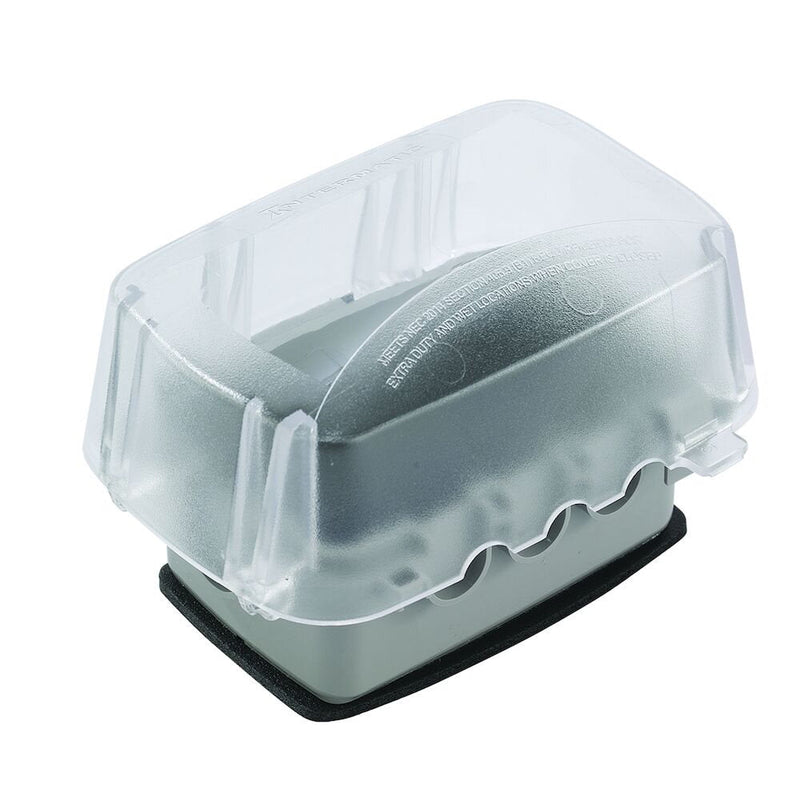

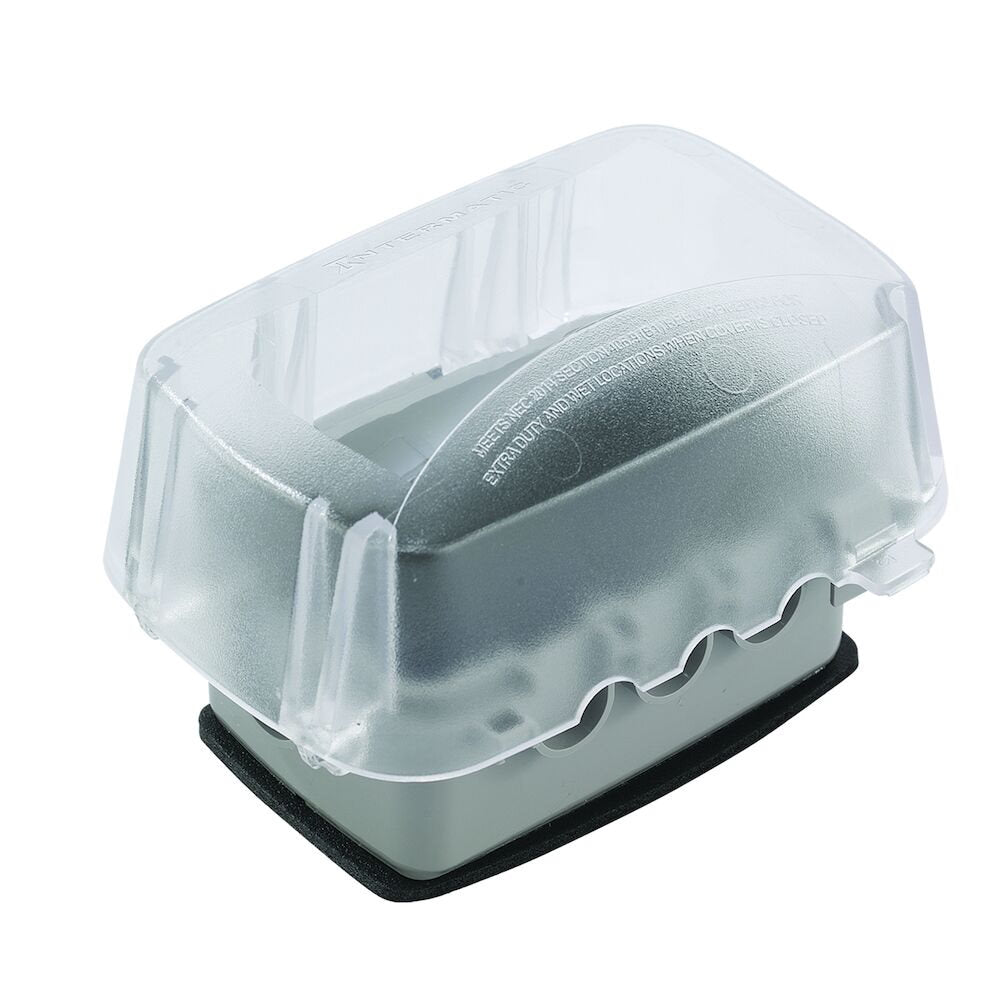

Intermatic - WP5110C - Extra-Duty Plastic In-Use Weatherproof Cover, Single-Gang, Vrt/Hrz, 3.625" Clear

IntermaticSKU: WP5110C

Price:
Sale price $11.39
Stock:
Sold out

Description

Spec Sheet

Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features:

  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8" (3 mm) thick, neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4" (6 mm) dia shank
  • Impact rated: 12 lbf. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
  • Warranty: 1-year limited

Applications:

  • Receptacle Protection

Specifications:

Box Type Single Color Clear, Gray
Is Extra-Duty Rated Yes Enclosure Type Outdoor type 3R plastic
Hinge Direction Vertical/Horizontal Warranty Period 1-Year limited
Accepted Cord Size Max 1x12 AWG, 2x14 AWG Cover Gasket 3mm
Has Reinforced Hinge Pin Yes Insert Types Included WP17
Material UV Stabilized Polycarbonate Weatherproof Cover Material UV Stabilized Plastic
Product Depth (in) 3 5/8 Product Depth (mm) 92
Product Height (in) 6 1/3 Product Height (mm) 160.3
Product Width (in) 4 2/3 Product Width (mm) 119.1
Unit Carton Height (in) 6.5 Unit Carton Length (in) 4.75
Unit Carton Weight (lb) 0.65 Unit Carton Width (in) 2.75
