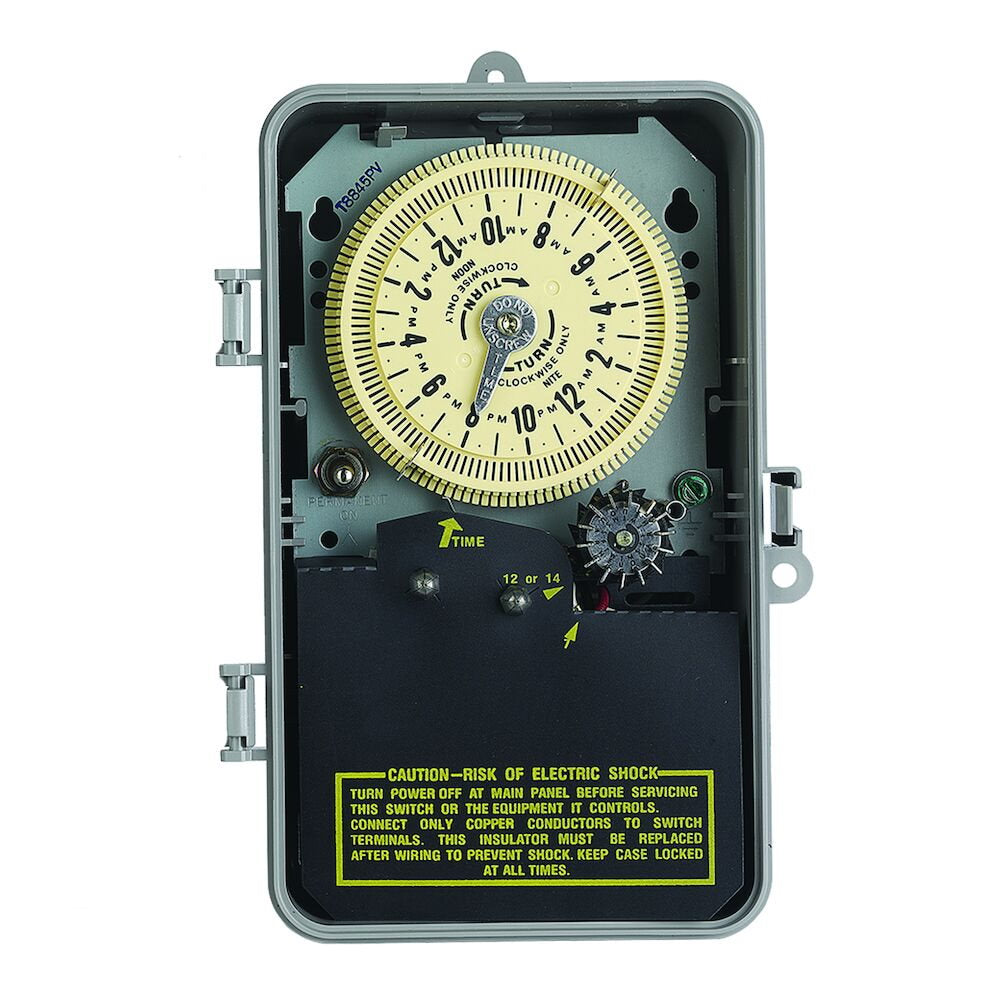

Intermatic - T8845PV - Sprinkler/Irrigation Time Switch with 14-Day Skipper

IntermaticSKU: T8845PV

Price:
Sale price $102.01
Stock:
In stock

Description

Install Manual

These irrigation timers are designed to permit one to 44 "ON" operations every 24 hours and provide watering increments down to 12 minutes or up to 20 hours and 45 minutes to ensure proper watering increments. These models also allow for biweekly scheduling with the convenient 14-day skipper for maximum water conservation and odd/even day compliance.

Features:

  • Up to 44 ON/OFF settings per day
  • Water metering increments from 12 minutes to 20 hours and 45 minutes
  • 14-Day skipper enables irrigation to be omitted on selected day(s)
  • Provides for every other day operation
  • ON/OFF/AUTO switch enables shutdown during rainy days and extended watering during dry periods without disturbing the cycle set on dial
  • Type 3R plastic indoor/outdoor enclosure

Applications:

  • Agriculture Feeders
  • Greenhouse Misting Control

Specifications:

Input Voltage Range(s) 24 VAC, 60 Hz Maximum ON/OFF Operations 44
Mechanism Type Analog/Mechanical Switch Type SPST
Enclosure Type Indoor/outdoor type 3R plastic Minimum ON/OFF Times 12 min
Maximum ON/OFF Times 20 hours, 45 minutes Warranty Period 1-Year limited
Amps Per Pole 20 VA Clock Motor Voltage 110/125 VAC, 60 Hz
Load Voltage 24 VAC, 60 Hz Motor (Three-Phase) 24 VAC, 60 Hz
Number of Trippers Included 12 Tripper Actuating Time 12 min
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 4 Product Depth (mm) 101.6
Product Height (in) 10 Product Height (mm) 254
Product Width (in) 6.5 Product Width (mm) 165.1
Unit Carton Height (in) 4.25 Unit Carton Length (in) 11.75
Unit Carton Weight (lb) 3.243 Unit Carton Width (in) 7.31
