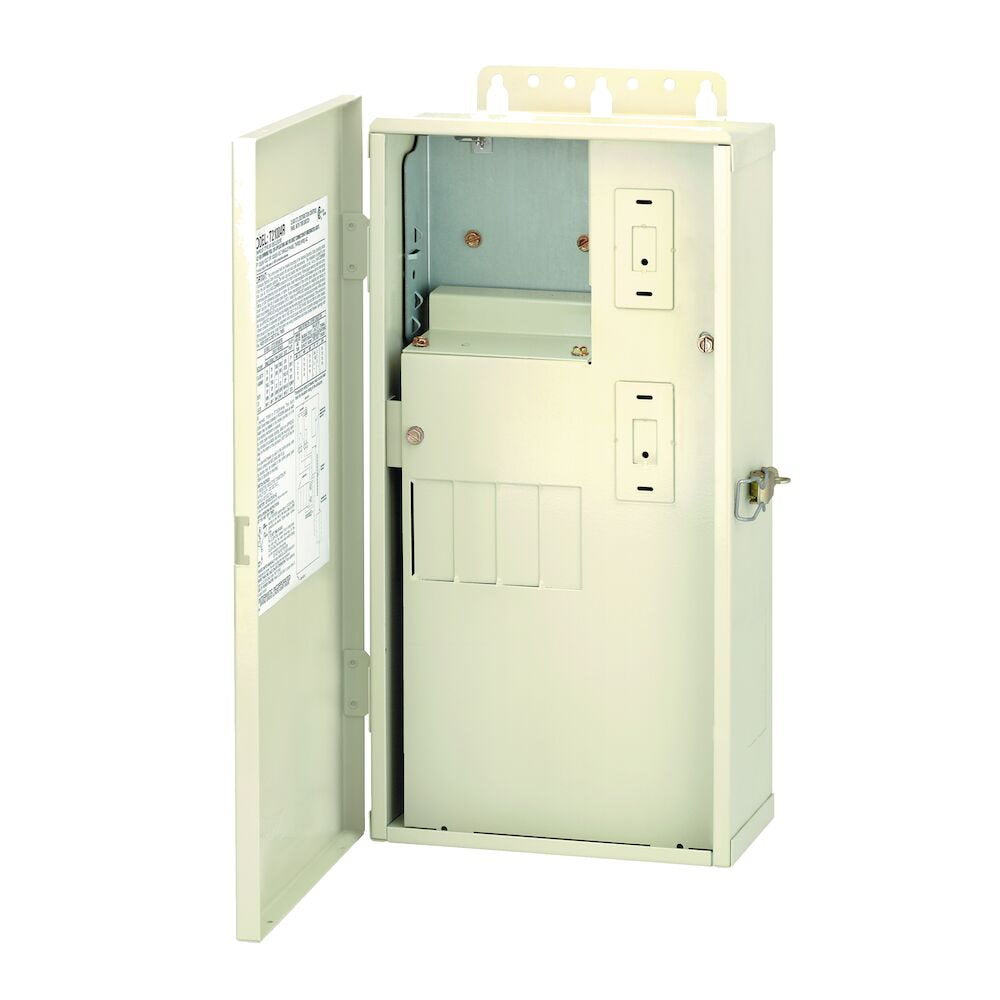

Intermatic - T21000R - 60 A Load Center Only, 4-Breaker Spaces

IntermaticSKU: T21000R

Price:
Sale price $153.98
Stock:
Sold out

Description

Install Manual

This system can be used as a load center only, or add a heavy-duty mechanical time switch or wiring devices for a complete system.

Features:

  • Four breaker spaces
  • Accepts PF1000M, P1403ME, P1353ME, P4043ME, P4243ME,T100M or RC2000M Series mechanisms
  • Accepts many interchangeable type breakers
  • Load center dead front has two knockouts for switches or GFCIs and one on the side
  • Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately

Applications:

  • Distribution/Control Panel
  • Motor Control
  • Pump Control

Specifications:

Input Voltage Range(s) 120/240 VAC, 60 Hz Warranty Period 1-Year limited
Knockout Dimensions Back (1) combination 1/2" - 3/4" and (1) 3/4" - 1" Knockout Dimensions Bottom (5) combination 1/2" - 3/4" and (3) combination 3/4" - 1"
Knockout Dimensions Left (1) combination 1/2" - 3/4" Knockout Dimensions Right (1) 1 3/4" x 2 3/4"
Mechanisms Load Center Only Product Depth (in) 4.75
Product Depth (mm) 120.7 Product Height (in) 16.875
Product Height (mm) 428.6 Product Width (in) 8.875
Product Width (mm) 225.4 Unit Carton Height (in) 5.75
Unit Carton Length (in) 17.75 Unit Carton Weight (lb) 11.227
Unit Carton Width (in) 10
