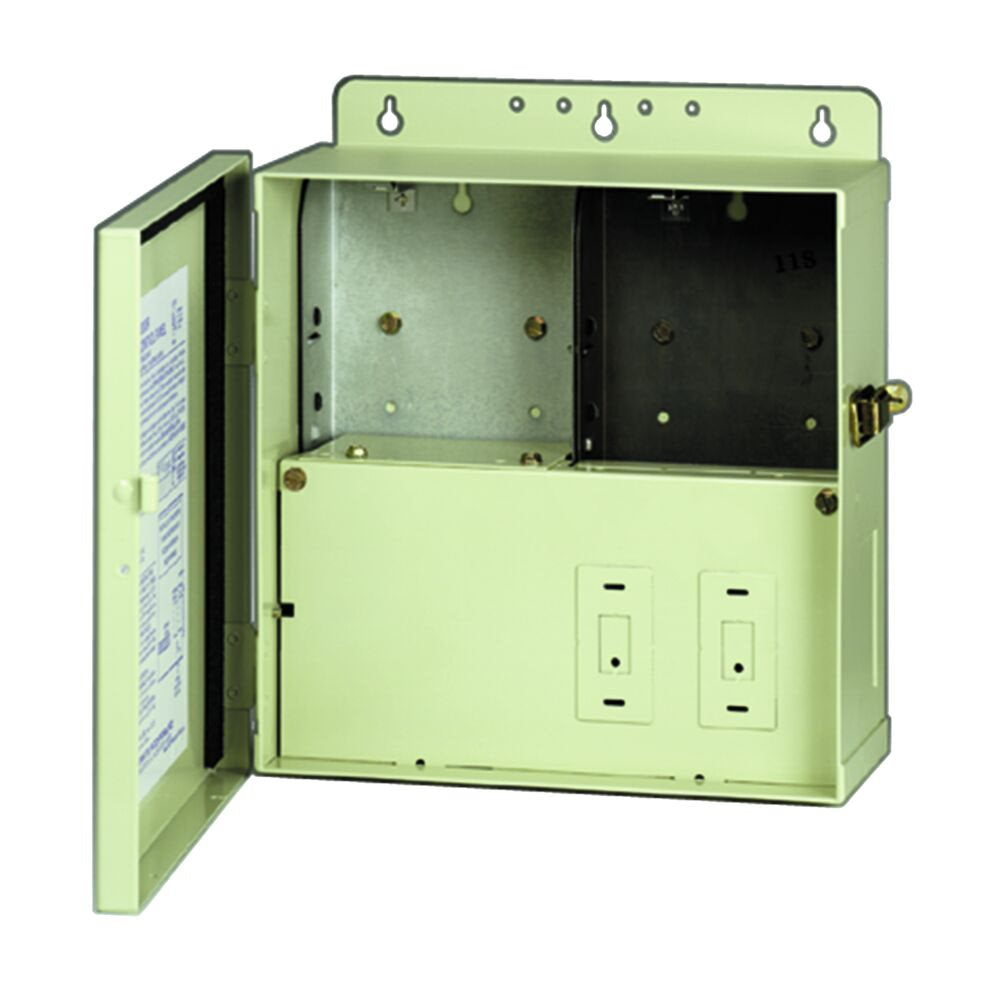

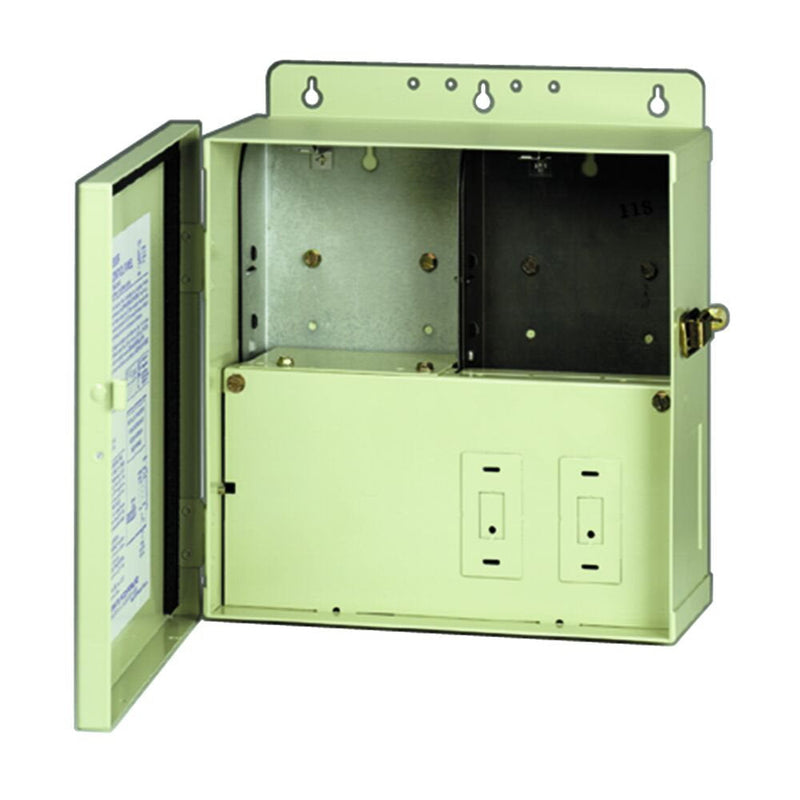

Intermatic - T10000R - Control Panel Only

IntermaticSKU: T10000R

Price:
Sale price $152.62
Stock:
Sold out

Description

Install Manual

Can be used as a power center only, or add mechanisms or wiring devices for complete control systems.

Features:

  • Available with one or two heavy-duty time switch mechanisms
  • Accepts any combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M or RC2000M Series mechanisms
  • Load center dead front has two knockouts for switches or GFCIs and one on the side
  • Wiring devices may be installed in these load centers with the use of Standoffs, sold separately below
  • Control two-speed pumps with the T10604R

Applications:

  • Distribution/Control Panel

Specifications:

Warranty Period 1-Year limited Knockout Dimensions Back (1) combination 1/2" - 3/4" and (1) 3/4" - 1"
Knockout Dimensions Bottom (5) combination 1/2" - 3/4" and (2) combination 3/4" - 1" Knockout Dimensions Left (1) combination 1/2" - 3/4"
Knockout Dimensions Right (1) 1 3/4" x 2 3/4" Mechanisms Power Center Only
Product Depth (in) 4.75 Product Depth (mm) 120.7
Product Height (in) 12.875 Product Height (mm) 327
Product Width (in) 10.875 Product Width (mm) 276.2
Unit Carton Height (in) 5.63 Unit Carton Length (in) 13.81
Unit Carton Weight (lb) 9.331 Unit Carton Width (in) 12.06
