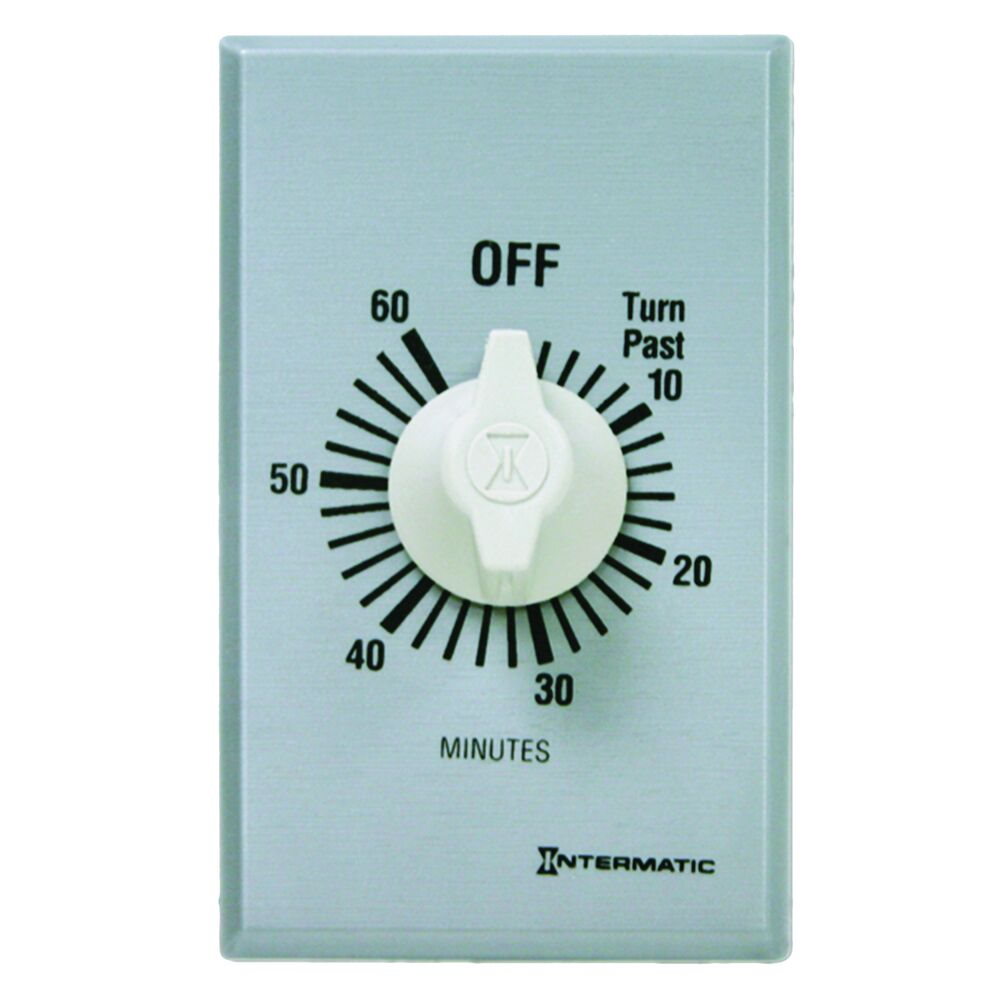

Intermatic FF60MC Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, SPST, 60 Minute Max, Without Hold, Silver
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features:
- 60-Minute
- SPST (Single-Pole Single-Throw)
- Breaks circuit at end of timing cycle
- No electricity required to operate
- Replaces any standard or decorator single-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Brushed metal look switch plate meets NEC requirements (plate is included)
- Incandescent/fluorescent/CFL/LED compatible
Applications:
-
Air Movement & Ventilation
-
Indoor Lighting Control
-
Motor Control
-
Outdoor Lighting Control
Specifications:
Color | Silver | Input Voltage Range(s) | 125-277 VAC, 50/60 Hz |
Operation Mode | Countdown | Switch Type | SPST |
Wiring Configurations | Single | Hold Mode Included | No |
Wall Plate Configurations | Single-Gang, Multi-Gang | Countdown Time | 60 min |
Mechanism Type | Analog/Mechanical | Neutral Connection Required | No |
Warranty Period | 1-Year limited | Application Compatibilities | CFL, Fluorescent, Incandescent, LED |
Basic Delivery Free to Customer | Yes | Basic Delivery Free to Installer | Yes |
Category | Spring Wound Countdown Timers Web | Includes Wall Plate | Yes |
Motor Three Phase Ranges | 1 HP, 125 VAC; 2 HP, 250 VAC | Rating | General Purpose |
Resistive Heater | 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC | SO Customer Ship Surcharge | 0.00 |
SO Installer Ship Surcharge | 0.00 | SO Store Ship Surcharge | 0.00 |
Ship to Customer Delivery Option | 99 - Manually Assign | Ship to Installer Delivery Option | 99 - Manually Assign |
Ship to Store Delivery Option | 99 - Manually Assign | Timer Type | Mechanical |
Tungsten (Incandescent) Range(s) | 7 A, 125 VAC, 50/60 Hz, 875 W | Tungsten Incandescent | 7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W |
Operating Temperature Max (°C) | 49 | Operating Temperature Max (°F) | 120 |
Operating Temperature Min (°C) | 4 | Operating Temperature Min (°F) | 40 |
Product Depth (in) | 1.25 | Product Depth (mm) | 31.8 |
Product Height (in) | 4.125 | Product Height (mm) | 104.8 |
Product Width (in) | 1.75 | Product Width (mm) | 44.5 |
Unit Carton Height (in) | 7 | Unit Carton Length (in) | 2.5 |
Unit Carton Weight (lb) | 0.301 | Unit Carton Width (in) | 4 |
