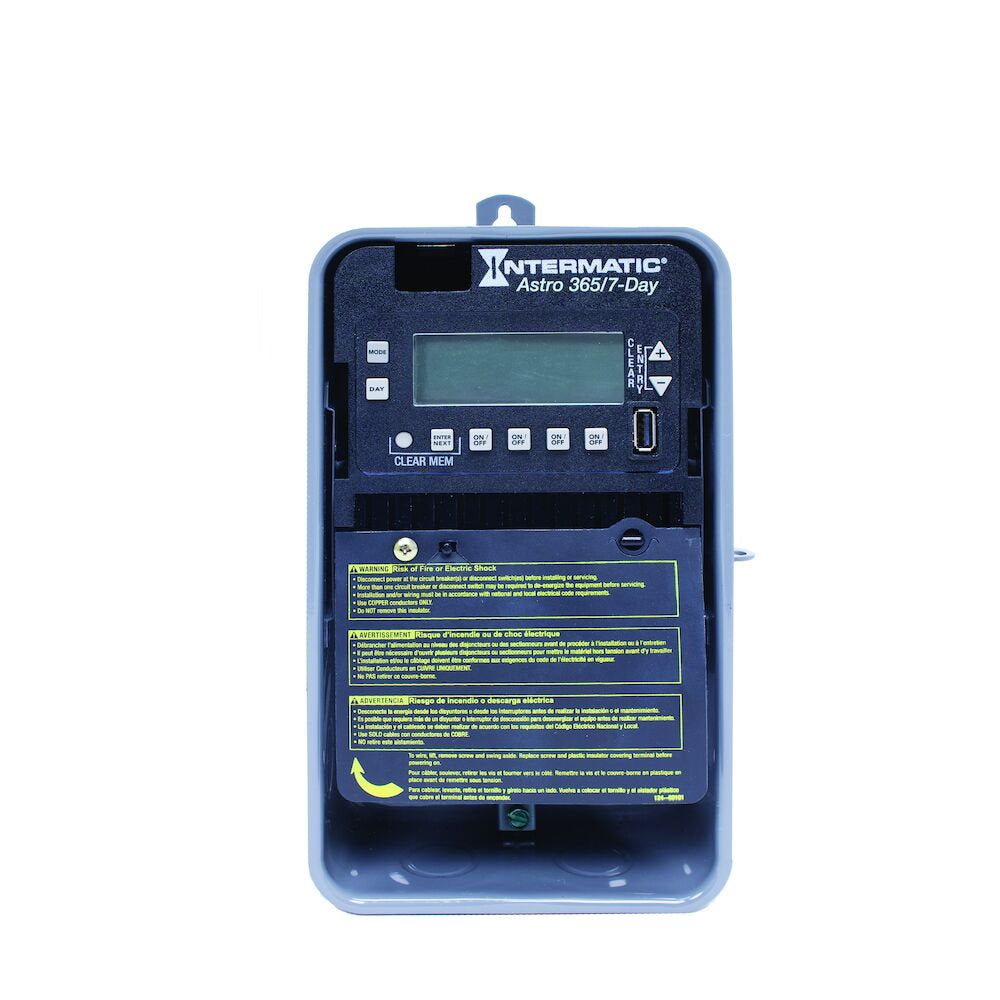

Intermatic - ET2845CR - Astronomic 7-Day/365 Day 4-Circuit Electronic Control, 120-277 VAC

IntermaticSKU: ET2845CR

Price:
Sale price $565.44
Stock:
Sold out

Description

Spec Sheet  Install Manual

Intermatic ET2845CR Astronomic 7-Day/365 Day 4-Circuit Electronic Control, 120-277 VAC, 4-SPST/2-DPST, Outdoor Metal Enclosure

The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Features:

  • 100-hour supercapacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz
  • Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero-crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy

    Applications:

    • Outdoor Lighting Control
    • Machinery & Pump Controls
    • Timing/Scheduling ON/OFF

    Specifications:

    Backup Type Supercapacitor Input Voltage Range(s) 120-277 VAC, 60 Hz
    Maximum ON/OFF Operations 96 Number Of Circuits 4
    Operation Mode 7-day Switch Type 4xSPST, 2xDPST or Pulse
    Enclosure Type Outdoor type 3R metal Minimum ON/OFF Times 1 min
    Operation Features Astronomic, Holiday Electronic Series ET2000 Series
    Maximum ON/OFF Times Indefinite Maximum Power Consumption (W) 7 W
    Minimum Pulse Time 2 sec ON/OFF Operations 96
    Warranty Period 2-Year limited Wiring Option Terminals
    Application Compatibilities LED Backup Protection Time 100 Hour
    Backup Restoration Time 30 Minutes Category Astronomic Electronic Controls Web
    Daylight Savings Adjustment Automatic Electronic Ballast LED 10 A
    Electronic Ballast Load Ratings NO Ranges 10 A, 120/277 VAC Inductive Load Ratings NO Ranges 30 A, 120-240 VAC
    Knockout Dimensions Back (1) combination 1/2" - 3/4" Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
    Magnetic Ballast (NO) Range(s) 20 A, 120-277 VAC Maximum Pulse Time 2 sec
    Motor Load Ratings NO Ranges 1 HP, 120 VAC; 2 HP, 240 VAC Resistive (NO) Range(s) 20 A, 28 VDC; 30 A, 120-240 VAC
    Tungsten (NO) Range(s) 5 A, 120-277 VAC Voltage Selection Type Auto Voltage
    Wire Size Max #8 AWG Wire Size Min #14 AWG
    Operating Temperature Max (°C) 40 Operating Temperature Max (°F) 104
    Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
    Product Depth (in) 3.625 Product Depth (mm) 92.1
    Product Height (in) 10.125 Product Height (mm) 257.2
    Product Width (in) 6.5 Product Width (mm) 165.1
    Unit Carton Height (in) 10.06 Unit Carton Length (in) 6.56
    Unit Carton Weight (lb) 3.3 Unit Carton Width (in) 4
