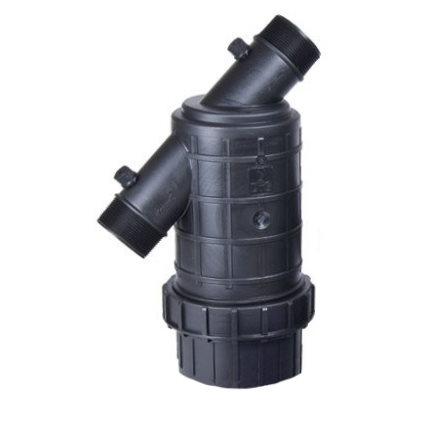

DIG Irrigation P75-120DL 1 1/2 in. MNPT with Stainless Steel Screen & Flush Cap, Filter Disc, 120 Mesh

DIG IrrigationSKU: P75-120DL

Price:
Sale price $122.77
Stock:
Sold out

Description

  • Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs and out the middle of the filter
  • Disc elements provide in-depth filtration to retain organic matter
  • During operation the disc elements are tightly pressed together by pressure and the spring, providing high filtration efficiency
  • Discs have excellent resistance to most common chemicals
  • Easy maintenance; the discs can be extracted for cleaning
  • Interchangeable color-coded discs and stainless-steel screen elements provide a wide range of filtration degrees and options
  • Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Specifications

  • Flow rates: 1 1/2" & 2": up to 60 GPM (13.6 m3/h)
  • Operating pressure: up to 120 PSI (8.4 BAR)
  • Temperature range: up to 130°F (54°C)
  • Inlet and outlet size: 1 1/2", 2" MNPT
  • Filter and Disc Materials
    • Housing and discs: polypropylene
  • O-ring: EPDM
    • Pressure testing ports: polypropylene
    • Pressure testing seals: natural rubber BR
    • Disc cylinder assembly: polypropylene / PBT
    • Spring: stainless steel 304
