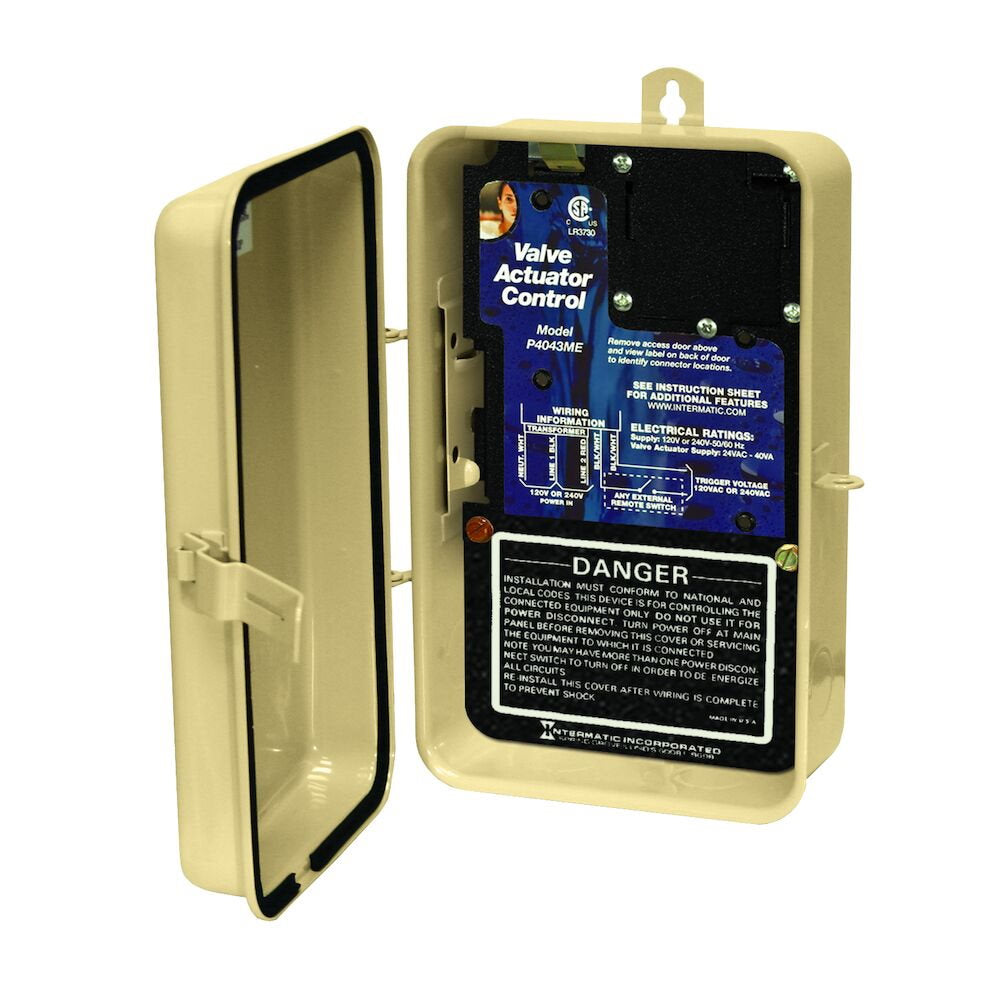

Intermatic - PE140 - Valve Actuator Control, Type 3R Metal Enclosure

IntermaticSKU: PE140

Precio:
Precio de venta $262.04
Stock:
Agotado

Descripción

Install Manual

This product is perfect for controlling the direct flow of water to desired Pool and SPA applications. The output controls 24 V electronic valve actuators and the input can be wired to 120 VAC or 240 VAC. It can also be used with a spring-wound timer or simple switch to control fountains or other aquatic features.

Features:

  • Easily snaps into most existing Intermatic enclosures with available mechanism support bracket
  • Controls up to three valve actuators
  • Switches heater thermostat HIGH/LOW
  • Remote control capabilities

Applications:

  • Motor Control
  • Pump Control

Specifications:

Input Voltage Range(s) 120/240 VAC, 50/60 Hz Enclosure Type Indoor/outdoor type 3R metal
Warranty Period 1-Year limited Actuator Supply Voltage 24 VAC, 40 VA
Product Depth (in) 3.623 Product Depth (mm) 92.024
Product Height (in) 10.131 Product Height (mm) 257.327
Product Width (in) 6.513 Product Width (mm) 165.43
Unit Carton Height (in) 10 Unit Carton Length (in) 4
Unit Carton Weight (lb) 2.894 Unit Carton Width (in) 7
