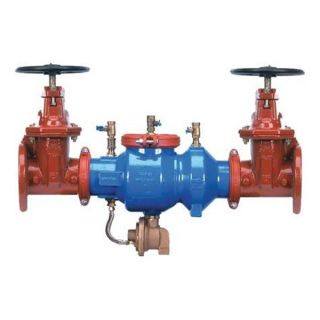

Zurn Wilkins 3" 375A Flanged NRS Reduced Pressure Principle Assembly

Zurn WilkinsSKU: 3-375A

Precio:
Precio de venta $3,781.52
Stock:
Agotado

Descripción


The Zurn Wilkins 375A Reduced Pressure Principle Backflow Preventer provides high hazard protection for all market segments. The grooved, epoxy coated ductile iron body is available with multiple shut-off valve options for installation versatility.
  •  3" reduced pressure principle assembly - grooved gate valve connections
  •  Lightweight epoxy-coated ductile iron body
  •  Utilizes Zurn Wilkins low headloss compound check
  •  Low-lead law compliant

Standards Copliance
  • ASSE Listed 1013
  • AWWA Compliant C511 (with gates only), and C550
  • IAPMO Listed
  • CSA Certified
  • UL Classified
  • C-UL Classified
  • FM® Approved
  • Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California.
  • NYC MEA 484-04-M
  • Meets the requirements of NSF/ANSI 61 (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)

Features Sizes:

 2 1/2"*, 3"*, 4", 6", 8", 10"

Maximum working water pressure  175 PSI

Maximum working water temperature 140°F

Hydrostatic test pressure   350 PSI

End connections

(Grooved for steel pipe) AWWA C606

(Flanged)  ANSI B16.42     Class 150

*2 1/2 & 3" sizes use 4" body & reducer couplings
