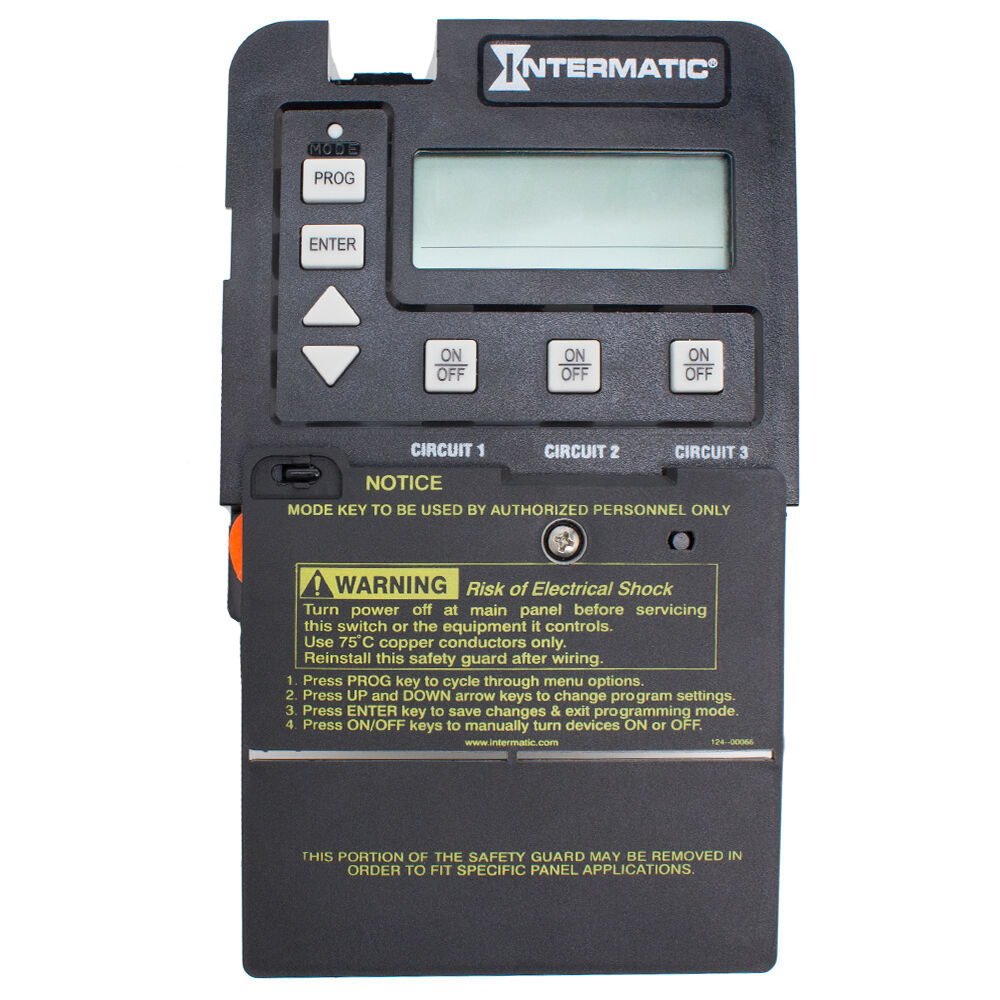

Intermatic - P1353ME - 24-Hour Time Control, 3-Circuit, Mechanism Only

IntermaticSKU: P1353ME

Precio:
Precio de venta $337.64
Stock:
Disponible

Descripción

Install Manual

This multipurpose 24-hour control is capable of automatically switching loads according to a preset daily schedule. Controls single- and two-speed pumps and cleaner/booster pumps. Three ON/OFF events per circuit per day.

Features:

  • Controls single- and two-speed pumps and cleaner/booster pumps
  • Three ON/OFF events per circuit per day
  • Seven preprogrammed modes
  • Freeze and heater protection
  • LCD readout
  • Multivoltage input and output
  • Countdown and override features enable programs to be overridden and automatically resumed without requiring the user to reprogram the system

Applications:

  • Motor Control
  • Pump Control

Specifications:

Input Voltage Range(s) 120/240 VAC, 50/60 Hz Maximum ON/OFF Operations 3
Number Of Circuits 3 Operation Mode 24 hour
Resistive 17 A, 120 VAC, 50 Hz, 17 A, 120 VAC, 60 Hz, 17 A, 240 VAC, 50 Hz, 17 A, 240 VAC, 60 Hz Switch Type 3-SPST
Resistive Load Ratings Ranges 17 A, 120/240 VAC, 50/60 Hz Warranty Period 1-Year limited
Body Material Metal Motor (Three-Phase) 17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz
Motor Three Phase Ranges 80 LRA @ 120/240 VAC, 50/60 Hz; 17 FLA @ 120/240 VAC, 50/60 Hz Outdoor Living Product Type Pool Controls
Pool Type Above Ground, In Ground Tungsten (NO) 5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 240 VAC, 50 Hz, 5 A, 240 VAC, 60 Hz
Tungsten Range(s) 5 A, 120/240 VAC, 50/60 Hz Voltage Selection Type Multi Voltage
Unit Carton Height (in) 8 Unit Carton Length (in) 5.25
Unit Carton Weight (lb) 1.597 Unit Carton Width (in) 3.25
