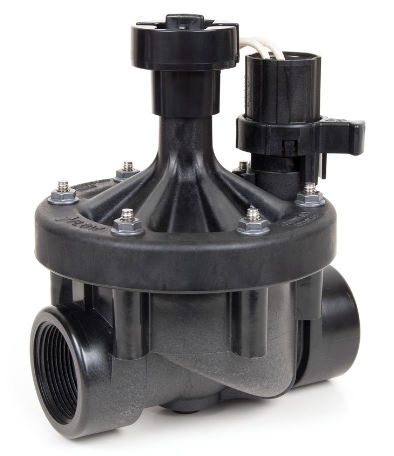

Rain Bird - PEB Industrial Valve - PEB Valves with Flow Control

Rain BirdSKU: 100PEB

Price:
Sale price $96.45
Stock:
In stock

Description

*One Solenoid Handle Per Order



The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.

PEB Valve Features Include:
  • Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance.
  • Globe configuration.
  • Normally closed, forward flow design.
  • Slow closing to prevent water hammer and subsequent system damage.
  • Low flow capability for a wide range of applications.
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
  • Flow control handle adjusts water flows as needed.
  • Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
  • Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs.
  • Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads
Specifications Include:
  • Temperature: Up to 150° F (66° C)
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
    • 0.41 A (9.8 VA) inrush current
    • 0.28 A (6.7 VA) holding current
  • Solenoid coil resistance: 24 Ohms, nominal

Specifications:

  • Inlet Size: 1
  • Inlet Thread: Female NPT
  • Flow Control: 0.25 - 200
  • Pressure Rating/Range: 20 - 200
