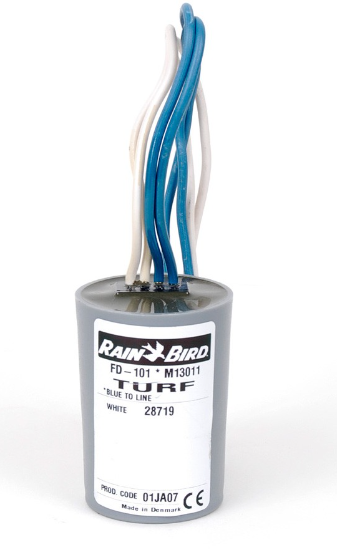

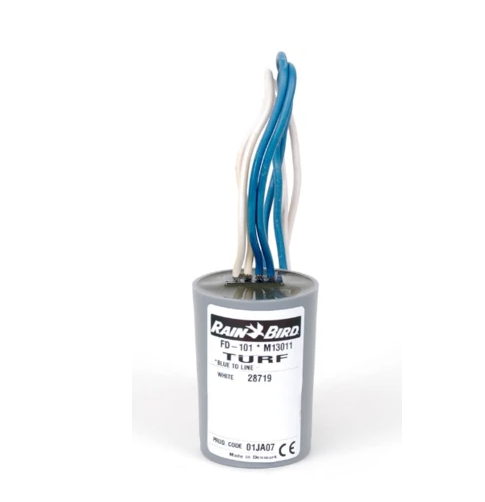

Rain Bird - FD101TURF FD Series Field Decoder - Signal Line, Individual Valve

Rain BirdSKU: FD101TURF

Price:
Sale price $175.10
Stock:
In stock

Description



Rain Bird Field Decoders provide easy, cost-effective installation and expansion for SiteControl Decoder or ESP-LXD Decoder Central Control Systems. Decoders are installed out of sight to help protect them from the elements and vandalism.

A technology long-since proven on golf courses around the world, Rain Bird decoders provide "best-in-class" field control on centrally controlled 2-wire irrigation systems. Installed underground and featuring simple, low-cost wiring, decoders are an aesthetically pleasing, full-featured, economical option for reliable in-field control.

A simple wiring configuration and absence of protective enclosures keeps installation and maintenance costs low. Rain Bird decoders are a “true lower than 30 volt” system that utilize a two-wire path of 14-gauge wire connecting the central control system, decoders and valves or valve-in-head sprinklers.

With all electronic components fully sealed within a water‑tight enclosure and buried underground, damage from floods, frost, rodents or vandals is virtually eliminated. Rain Bird decoders are an especially good choice for flood plains.

Features:
  • Mounting: In valve box or direct burial.
  • Power Draw: 0.5 mA (idle) 18 mA (per active solenoid)
  • Length: 3.35 in. (85 mm)
  • Diameter: 1.77 in. (45 mm)
  • Solenoids: 1 address, 1 solenoid per address
  • Wires: Blue to cable, white to solenoid
  • Output Power: Adjustable from controller
  • Encapsulation: Fully waterproof
  • Address: Pre-coded from factory (i.e., no switches)
  • Nominal voltage: 34 Vpp (24V AC) from 2-wire line
  • Minimum voltage: 21 Vpp (15V AC)
  • Standby Current:0.5 mA
  • Eectrical Output: Max. voltage: 33 Vpp
  • Max. load: 1 Rain Bird solenoid
  • Electrical Resistance: Max. 3 ohms
  • Cable length: 456 feet
  • Wiring: 2 x 14-gauge (1.5 mm2) solid copper, UF insulated type
  • Working range: 32° to 122° F (0° to 50° C)
  • Storage range: -4° to 158° F (-20 to 70° C)
  • Humidity: 100%
