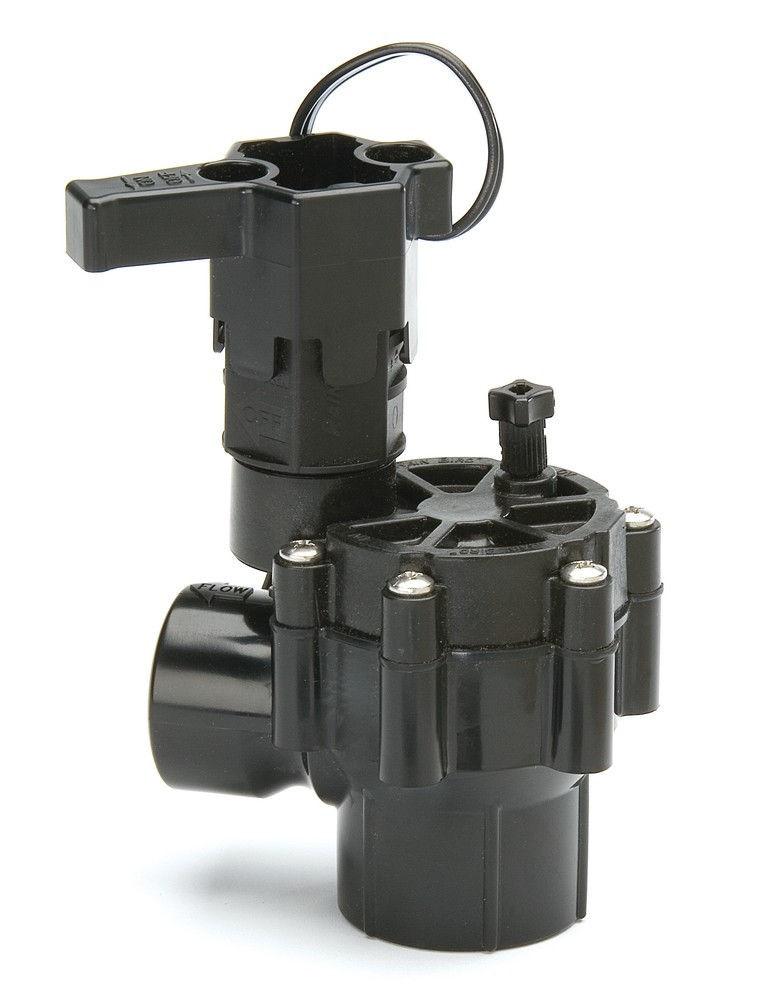

Rain Bird - 100DVA 1" DV Series Inline Plastic Residential Irrigation Valve - Angle Configuration

Rain BirdSKU: 100DVA

Price:
Sale price $31.98
Stock:
In stock

Description

    *One Solenoid Handle Per Order



    The Rain Bird DV/DVF valve is the premium valve product chosen by more professionals than any other valve on the market. Its long history of reliable performance makes it the natural choice for your landscape. Its consistent, problem-free performance means you can spend less time thinking about your irrigation system and more time enjoying your landscape.

    Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required.

    All of our residential valves work with any standard sprinkler timer.

    • 1 in. (26/34) Angle (A) configurations for flexible installations especially when submains are deep

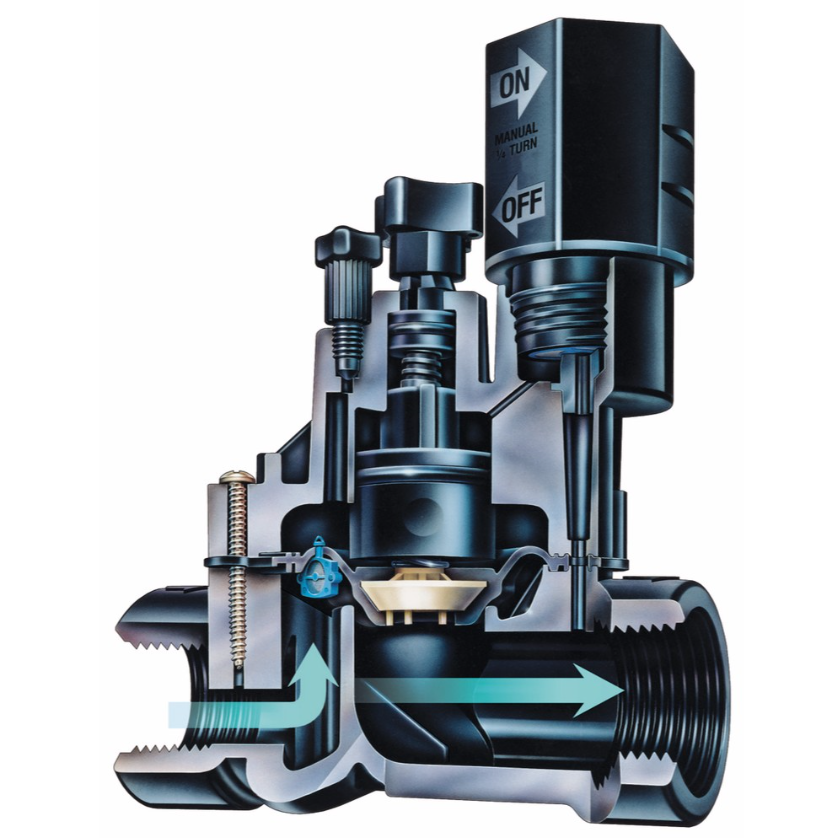

    • Double-filtered pilot-flow design for maximum reliability
    • Balanced-pressure diaphragm for long life
    • External bleed to manually flush system of dirt and debris during installation and system start-up
    • Internal bleed for spray-free manual operation
    • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter

    Additional features:

    • All of our valves work with any standard sprinkler timer.
    • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
    • Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream.
    • 1.25 in. (3,2 cm) stainless steel phillips head screws.
    • Accepts latching solenoid for use with Rain Bird battery-operated controllers.

    • Valve Size: 1 in
    • Valve Type: Inline
    • Material: Plastic
    • Valve Inlet/Outlet Configuration: Angle NPT Female x NPT Female
    • Valve Series: DV/DVF
    • Operating Temperature: Up to 110° F (43° C)
    • Dimensions:
      • Height: 5 1/2" (14 cm)
      • Width: 3 1/3" (8,4 cm)
      • Length: 3 3/4" (9,5 cm)
      • Electrical Specifications:
        • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
        • 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
        • Solenoid coil resistance: 38 Ohms
        • Flow Range: 0.2 to 40 GPM (0,05 to 9,08 m3/h; 0,01 to 2,52 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream.
        • Operating Pressure: 15 to 150 psi (1,0 to 10,4 bar)
