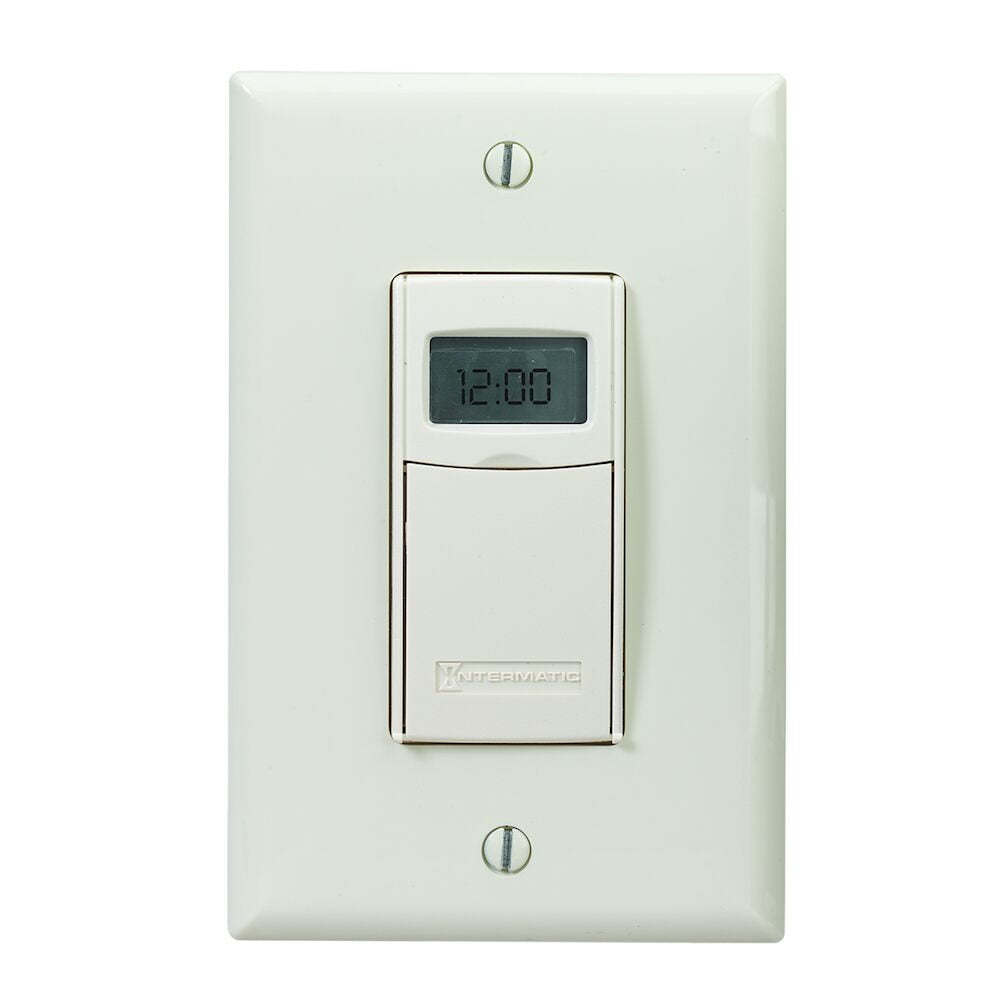

Intermatic ST01A 7-Day Heavy-Duty Programmable Timer, 120-277 VAC, 15A, Light Almond
Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features:
- Versatile 7-day programmable schedules with up to 40 ON/OFF events
- Astronomic clock feature determines dawn and dusk times
- Automatic Daylight Saving Time (DST) adjustment
- Random mode varies ON/OFF schedule to provide a "lived-in" appearance
- Single or 3-way switch compatible installation
- Incandescent/fluorescent/CFL/LED compatible
- Isolated switch allows timer to be used with any load type, including AC and DC loads
- Replaceable CR2 lithium battery provides up to three years of operation
- No neutral wire connection enables easy retrofitting and quicker installation
- Decorator switch plate not included
Applications:
-
Air Movement & Ventilation
-
Indoor Lighting Control
-
Outdoor Lighting Control
Specifications:
Backup Type | Battery | Color | Light Almond |
Input Voltage Range(s) | 120-277 VAC, 50/60 Hz | Maximum ON/OFF Operations | 40 |
Mechanism Type | Digital/Electrical | Operation Mode | 24 hour |
Wiring Configurations | 3-Way, Single | Minimum ON/OFF Times | 1 min |
Operation Features | Astronomic, Daylight Saving Time | Wall Plate Configurations | Single-Gang |
Backup Protection Time | 3 years | Warranty Period | 1-Year limited |
Application Compatibilities | CFL, Fluorescent, Incandescent, LED | Ballast Fluorescent | 8 A, 960 VA, 120 VAC; 4 A, 832-1108 VA, 208-277 VAC |
Battery Service Type | Replaceable | Battery Type | CR2 Lithium |
DC loads | 4 A, 12 VDC; 2 A, 28 VDC | Inductive | 4 A, 208 VAC, 50 Hz, 4 A, 208 VAC, 60 Hz, 4 A, 240 VAC, 50 Hz, 4 A, 240 VAC, 60 Hz, 4 A, 277 VAC, 50 Hz, 4 A, 277 VAC, 60 Hz, 8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz |
Inductive Load Ratings Ranges | 8 A, 120 VAC, 50/60 Hz; 4 A, 208-277 VAC, 50/60 Hz | Max Load Handling Capability | 15 A |
Motor Three Phase Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC | Resistive Heater | 15 A, 1800-4155 W, 120-277 VAC |
Tungsten (Incandescent) Range(s) | 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC | Tungsten Incandescent | 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC |
Operating Temperature Max (°C) | 40 | Operating Temperature Max (°F) | 104 |
Operating Temperature Min (°C) | 0 | Operating Temperature Min (°F) | 32 |
Product Depth (in) | 1.8125 | Product Depth (mm) | 46 |
Product Height (in) | 4.125 | Product Height (mm) | 104.8 |
Product Width (in) | 1.75 | Product Width (mm) | 44.5 |
Unit Carton Height (in) | 4.625 | Unit Carton Length (in) | 2.875 |
Unit Carton Weight (lb) | 0.4 | Unit Carton Width (in) | 2.125 |
