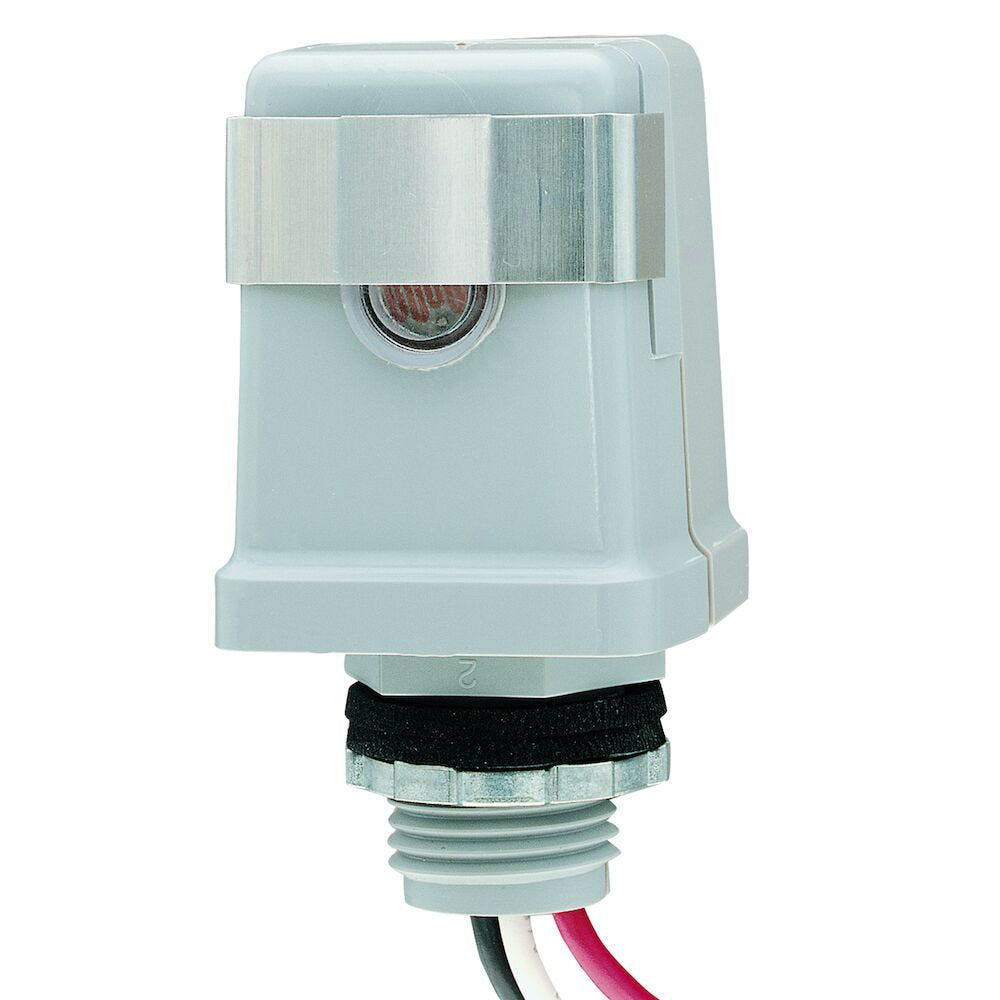

Intermatic - K4141C - Stem Mount Thermal Photocontrol, 120 V, 25 A

IntermaticSKU: K4141C

Price:
Sale price $31.85
Stock:
Sold out

Description

Spec Sheet  Install Manual

These photocontrols install on standard outdoor light fixtures and electrical boxes with 1?2"-14 NPSM thread or 7?8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.

Features:

  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Delay feature prevents unwanted OFF switching
  • Gray plastic housing
  • 1?2"-14 NPSM threaded stem
  • Washer gasket and locking nut included
  • #18 AWG, 9" wire leads

Applications:

  • Outdoor Lighting Control

Specifications:

Input Voltage Range(s) 120 VAC, 50/60 Hz Usage Environments Outdoor
Photocontrol Style Stem Mount Warranty Period 1-Year limited
Wiring Option Wire leads Application Compatibilities Fluorescent, HID, Incandescent
Activation Off 3 to 15 fc Activation On 1 to 5 fc
Basic Delivery Free to Customer Yes Basic Delivery Free to Installer Yes
Category Fixed Mount Thermal Photocontrols Web Cover Color Gray
Fail Mode ON Housing Material Polycarbonate
Magnetic Ballast (NO) 25 A, 3000 VA Magnetic Ballast Range(s) 25 A, 3000 VA
Outdoor Lighting Features No additional features Photo Control Switch Type Mechanical Bimetal
Photocell Type Cadmium Sulfide Photocontrol Sensor Location Side
Photocontrol Type Thermal SO Customer Ship Surcharge 0.00
SO Installer Ship Surcharge 0.00 SO Store Ship Surcharge 0.00
Sensor Time Delay 30 sec to 90 sec Ship to Customer Delivery Option 99 - Manually Assign
Ship to Installer Delivery Option 99 - Manually Assign Ship to Store Delivery Option 99 - Manually Assign
Tungsten (NO) 25 A, 3000 W Tungsten Range(s) 25 A, 3000 W
Wire Size Max #18 AWG Operating Temperature Max (°C) 70
Operating Temperature Max (°F) 158 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 1 9/16
Product Depth (mm) 39.7 Product Height (in) 3
Product Height (mm) 76.2 Product Width (in) 1 9/16
Product Width (mm) 39.7 Unit Carton Height (in) 4.88
Unit Carton Length (in) 3 Unit Carton Weight (lb) 0.1
Unit Carton Width (in) 1.75
