Intermatic - PB913N66 - PB913N66 with Override F/RC2343PT

IntermaticSKU: PB913N66

Price:
Sale price $44.86
Stock:
In stock

Description

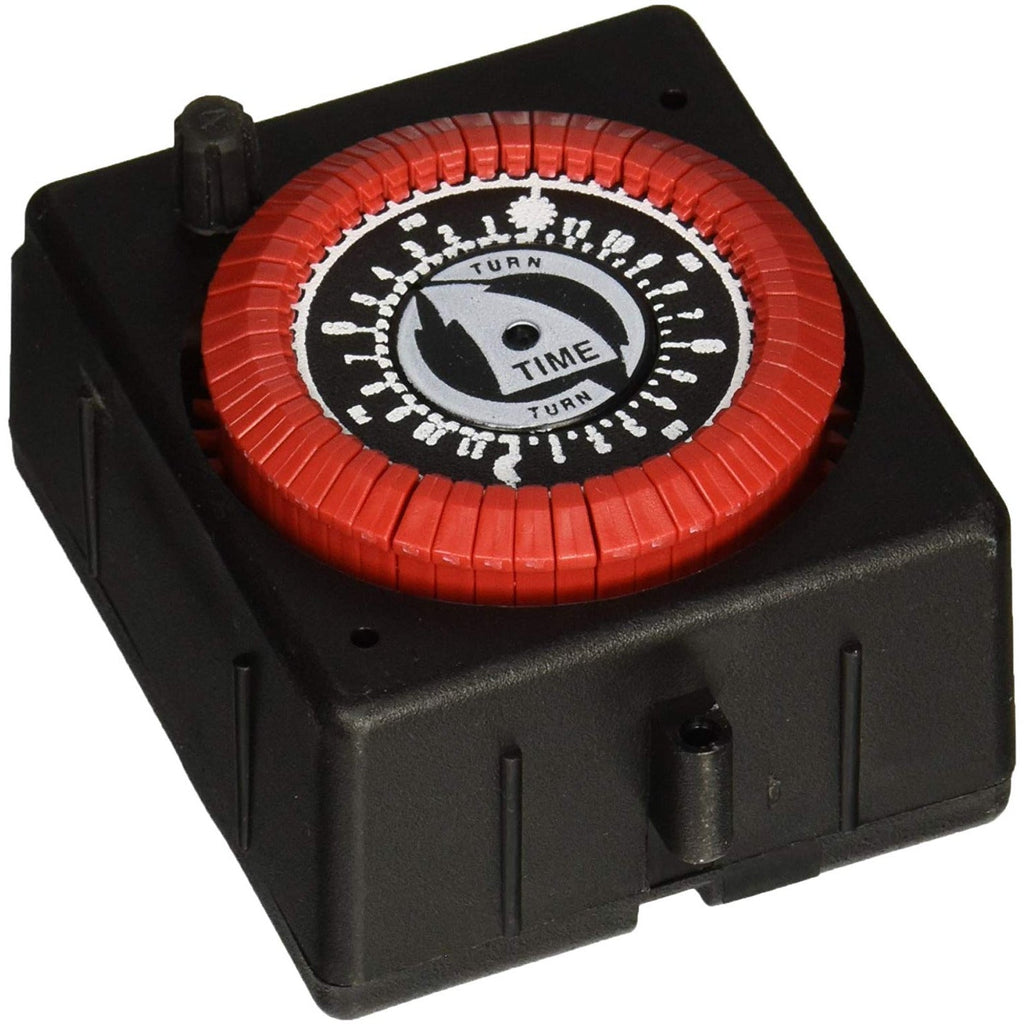

The Intermatic PB913N66 replacement timer mechanism is a 24 hour timer which may be used for for pumps, cleaners and other types of loads. The timer has 3-way mounting; flush in round opening, raised in rectangular opening or on base. Quick-connect terminals for easy installation.


SPECIFICATIONS:

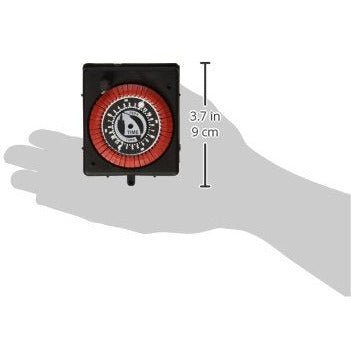

  • 3 1/3 in. H x 2 13/16 in. W x 1 61/64 in. D
  • 120 volts AC
  • SPST switch
  • 24-hour dial
  • Minimum ON time of 1 hour, maximum ON time of 23 hours, increments of 30 minutes
  • Manual override switch
  • 20 amp resistive electrical rating

Has Manual Override Yes

Has Override Switch Yes

Input Voltage Ranges 120 VAC, 60 Hz

Maximum Cycle Time 23 hrs

Minimum Cycle Time 1 hr

Motor

1 HP, 16 FLA, 120 VAC, 60 Hz
2 HP, 12 FLA, 240 VAC, 60 Hz

Mounting Options Panel, Surface, Flush

Number of Circuits 1

Operation Mode 24-hour

Other Certifications and Compatibilities RU

Pilot Duty 360 VA, 120-277 VAC, 60 Hz

Product Depth (in) 1.953

Product Depth (mm) 49.6

Product Height (in) 3.333

Product Height (mm) 84.6

Product Width (in) 2.813

Product Width (mm) 71.4

Resistive 20 A, 120-277 VAC, 60 Hz

Switch Type SPST

Timing Interval 30 min

Tungsten 1250 W, 125 VAC, 60 Hz

Warranty 1-Year limited

Wiring Option

(4) 1/4" male (2) for load (2) for independent clock motor, Terminals
