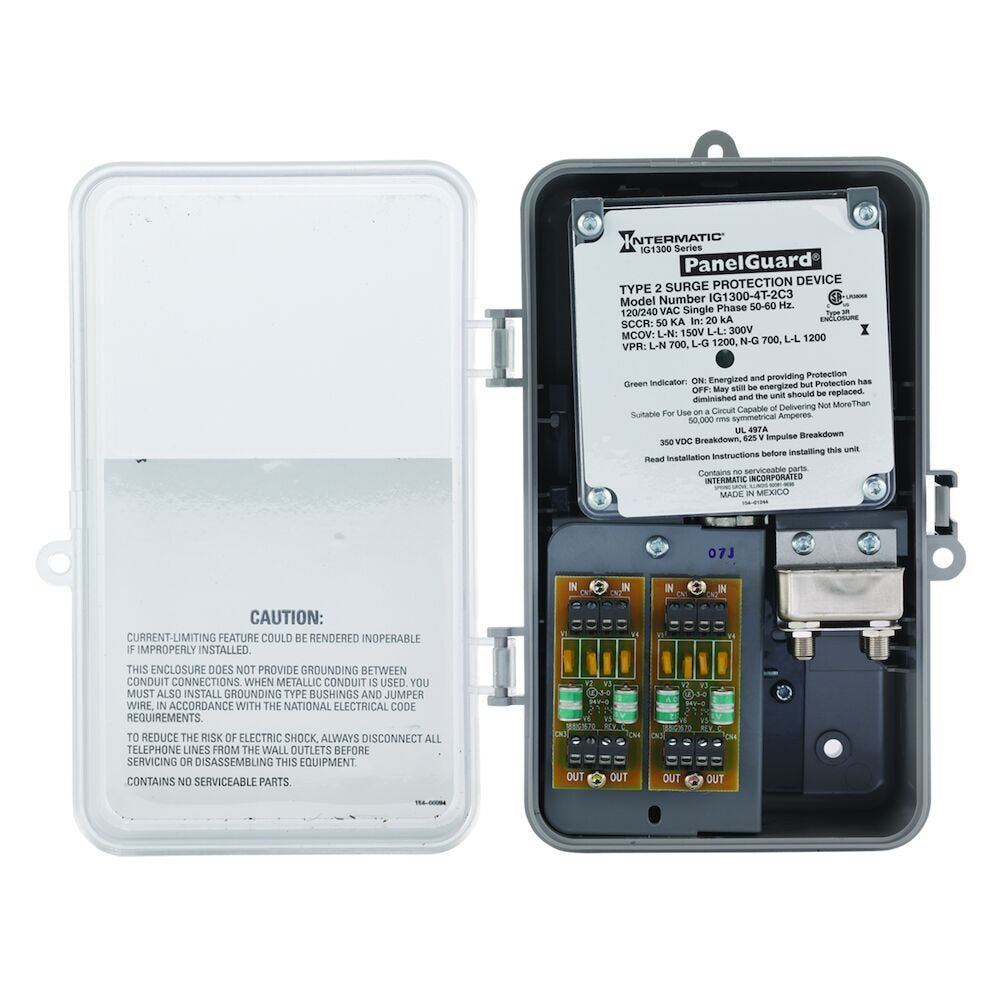

Intermatic IG1300-4T-2C3 Surge Protective Device, 4 Telephone Lines, 2 Coax Lines, 6-Mode, 120/240 VAC 1Ph, Type 2
The IG1300 Series provides protection for telephone and coax lines in addition to AC Power. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. The IG1300 Series Surge Protective Devices are designed for Type 2 applications for installations after service entrances. CSA certified to ANSI/UL 1449, 3rd Edition, UL 497A for phone line and UL 497B for coax cable.
Features:
- Six modes of protection for AC SPD
- TPMOV® surge protection technology for AC SPD
- Green LED indicator provides status of protection
- Provides protection for two telephone lines (analog phone line, modem, or DSL) and one coax line (cable TV, cable Internet, or Satellite TV)
- Type 3R plastic rainproof enclosure for indoor/outdoor installations
- 5-year product warranty
- $10,000 connected equipment warranty on appliances and electronics
- CSA certified to ANSI/UL 1449 3rd edition
- UL 497A is for telephone protection
- UL 497B is for coax protection
Applications:
-
Distribution Panel
-
Service Entrance
Specifications:
Input Voltage Range(s) | 120/240 VAC, 50/60 Hz | Modes of Protection | 6 (L1-N, L2-N, L1-G, L2-G, N-G, L1-L2) |
Surge Protection Type | 2 | Enclosure Type | Outdoor type 3R plastic |
Surge Protection Technology | TPMOV® | Voltage | 120/240 VAC Single-Phase |
Warranty Period | 5-Year limited | Wiring Option | Terminals, Wire leads |
Category | Hard Wired Surge Web | Connected Equipment Warranty Period | 5-Year limited |
Maximum Continuous Operating Voltage (L-G) | 300 | Maximum Continuous Operating Voltage (L-L) | 300 |
Maximum Continuous Operating Voltage (L-N) | 150 | Maximum Continuous Operating Voltage (N-G) | 150 |
Nominal Discharge Current | 20 kA | Phase | Single |
Short Circuit Current Rating | 50 kA | Surge Protection LED Indicator | Green |
UL Standard | Ansi/UL 1449 3rd Edition, UL 497A, UL 497B | Voltage Protection Rating (L-G) | 1200 |
Voltage Protection Rating (L-L) | 1200 | Voltage Protection Rating (L-N) | 700 |
Voltage Protection Rating (N-G) | 700 | Wire Size Max | #12 AWG, Tinned Copper |
Operating Temperature Max (°C) | 85 | Operating Temperature Max (°F) | 185 |
Operating Temperature Min (°C) | -35 | Operating Temperature Min (°F) | -31 |
Product Depth (in) | 4 | Product Depth (mm) | 102 |
Product Height (in) | 10 | Product Height (mm) | 254 |
Product Width (in) | 6.5 | Product Width (mm) | 165 |
Unit Carton Height (in) | 7.501 | Unit Carton Length (in) | 10.501 |
Unit Carton Weight (lb) | 3.5 | Unit Carton Width (in) | 4.251 |
