Intermatic - GM40AV - 40 A, Autovoltage General Purpose Time Control

IntermaticSKU: GM40AV

Price:
Sale price $89.71
Stock:
Sold out
 More payment options

Description

Spec Sheet  Install Manual

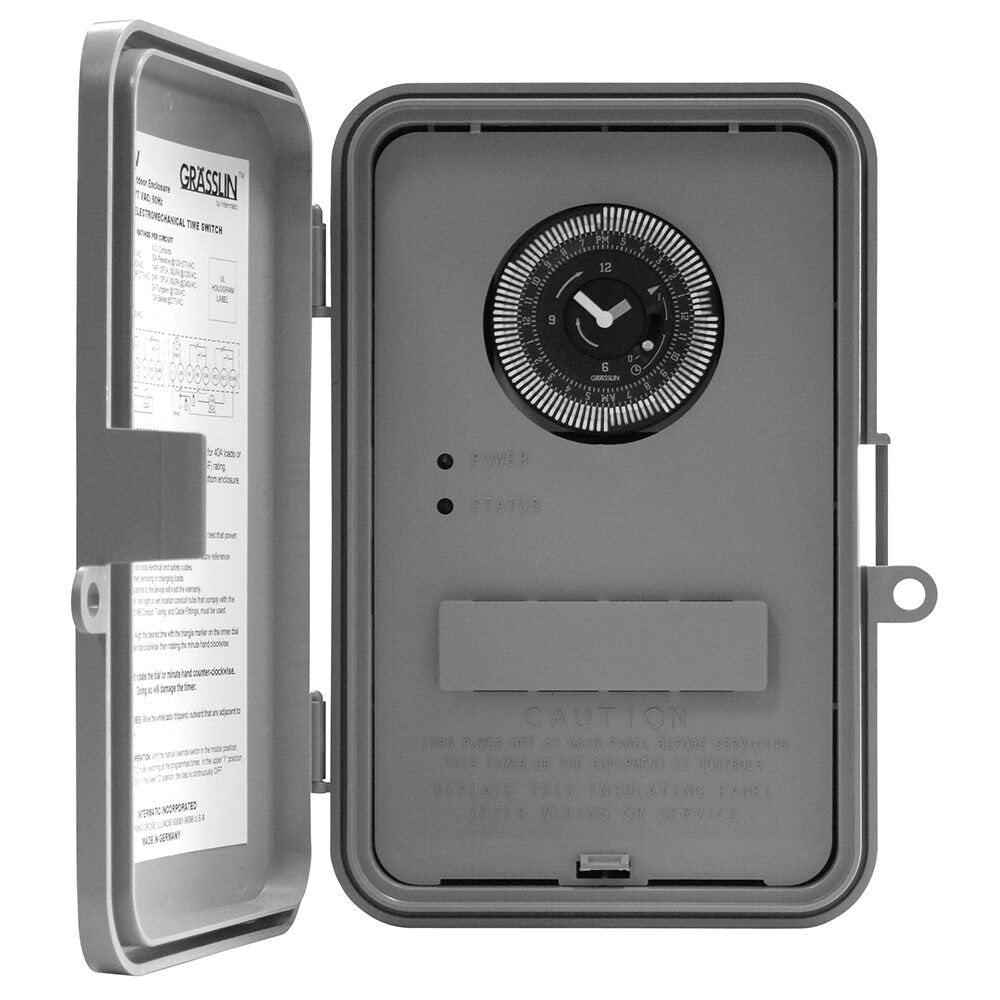

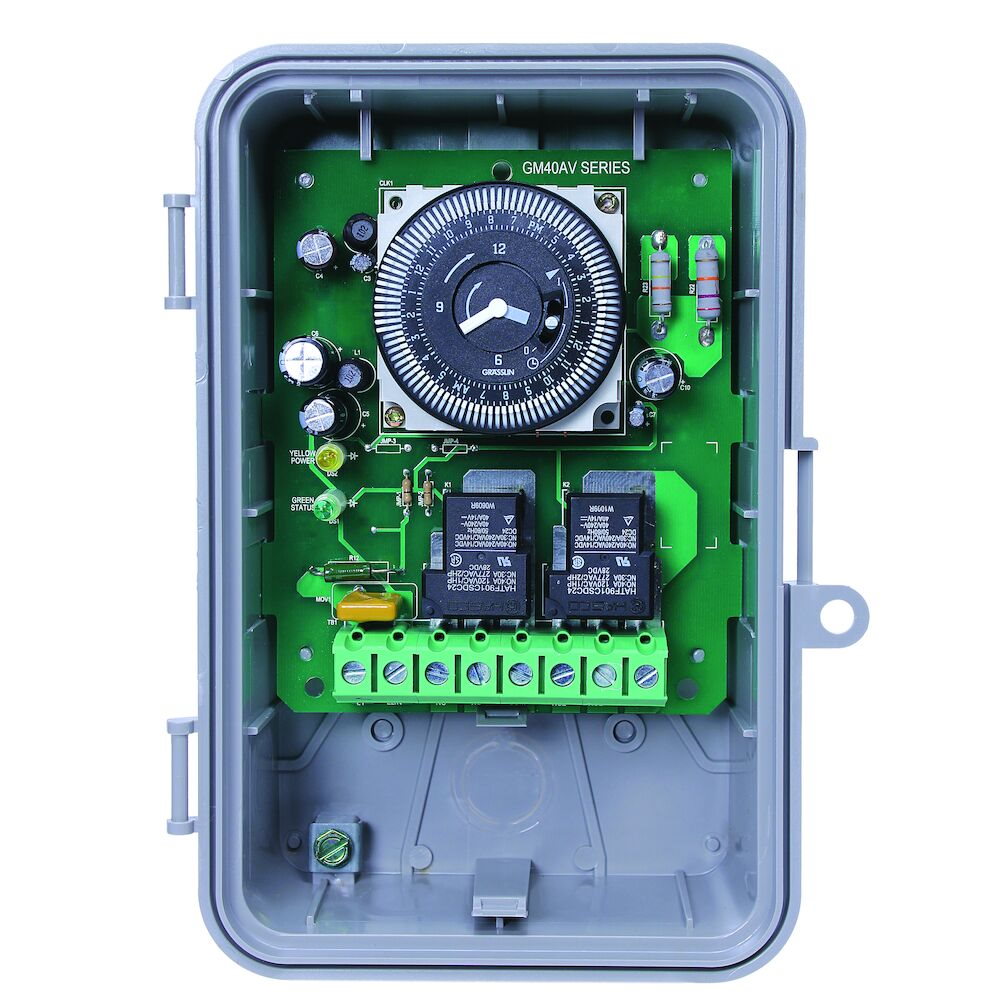

The GM40AV Time Switch is a universal, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time switch automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120-277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time switch features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).

Features:

  • Autovoltage selection 120 VAC-277 VAC
  • Captive trippers - trippers cannot be lost
  • 40 A rating
  • Self-recharging battery backup, "Q" models feature 72-hour carry-over
  • Power and status LED indicators
  • 24-Hour or 7-day models available
  • Up to 48 ON/OFF operations per 24-hour period or 42 ON/OFF operations per week on "W" models
  • DPDT switching configuration standard (2 NO and 2 NC Contacts)
  • Manual three-way ON/OFF/AUTO override switch
  • Easy-to-read clock face

Applications:

  • Aeration
  • Air Movement & Ventilation
  • Generator Exercising
  • Refrigeration Merchandiser
  • Septic Treatment

Specifications:

Input Voltage Range(s) Auto Voltage 120-277 VAC, 60 Hz Maximum ON/OFF Operations 48
Operation Mode 24 hour Switch Type DPDT
Enclosure Type Indoor/outdoor type 3R plastic Has Real-time Clock Face Yes
Minimum ON/OFF Times 15 min Mechanism Type Electromechanical
Resistive (NO) 40 A, 120-277 VAC Warranty Period 1-Year limited
Wiring Option Screw box lug Category Timer Controls Web
Electrical Life 50,000 operations at full load Has Captive Trippers Yes
Has Override Switch Yes Magnetic Ballast (NC) Range(s) 10 A, 277 VAC
Magnetic Ballast (NO) Range(s) 30 A, 120 VAC; 20 A, 277 VAC Motor (NC) 1 HP, 12 FLA, 30 LRA @120 VAC, 2 HP, 10 FLA, 30 LRA @240 VAC
Motor (NO) 1 HP, 16 FLA, 90 LRA @ 120 VAC, 2 HP, 12 FLA, 52 LRA @ 208-277 VAC Motor Load Ratings NC Ranges 1 HP, 12 FLA, 30 LRA @ 120 VAC; 2 HP, 10 FLA, 30 LRA @ 240 VAC
Motor Load Ratings NO Ranges 1 HP, 16 FLA, 90 LRA @120 VAC; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC Number of Trippers Included 96
Operating Humidity 0-95% RH, Non-condensing Pilot Duty (NO) 300 VA, 120 VAC, 300 VA, 208 VAC, 300 VA, 240 VAC
Pilot Duty (NO) Range(s) 300 VA, 120-240 VAC Pilot Duty Load Ratings Ranges 300 VA, 120-240 VAC
Resistive (NC) 30 A, 120 VAC, 60 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 60 Hz, 30 A, 277 VAC, 60Hz Resistive (NC) Range(s) 30 A, 120-277 VAC
Resistive (NO) Range(s) 40 A, 120-277 VAC RoHS Certification Yes
Tungsten (NC) Load Ratings 2 A, 120 VAC Tungsten (NO) Load Ratings 15 A, 120 VAC
Voltage Selection Type Auto Voltage Wire Size Max #8 AWG
Operating Temperature Max (°C) 55 Operating Temperature Max (°F) 131
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 3 Product Depth (mm) 7.62
Product Height (in) 8 7/8 Product Height (mm) 22.56
Product Width (in) 6 39/64 Product Width (mm) 16.79
Unit Carton Height (in) 9.125 Unit Carton Length (in) 6.75
Unit Carton Weight (lb) 1.83 Unit Carton Width (in) 3
