Intermatic - FM1D50A-120 - 24-Hour or 7-Day 120V Surface/DIN Rail Mount Module

IntermaticSKU: FM1D50A-120

Price:
Sale price $219.75
Stock:
Sold out

Description

Spec Sheet  Install Manual

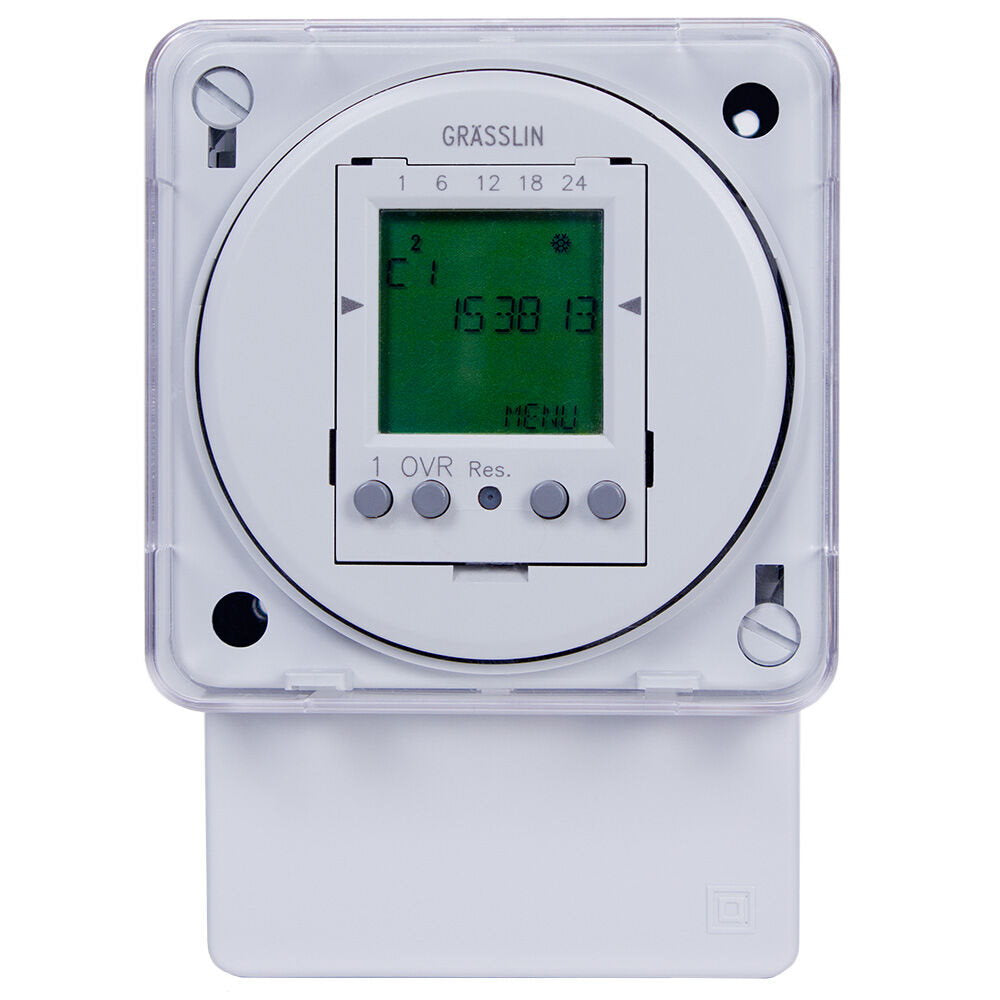

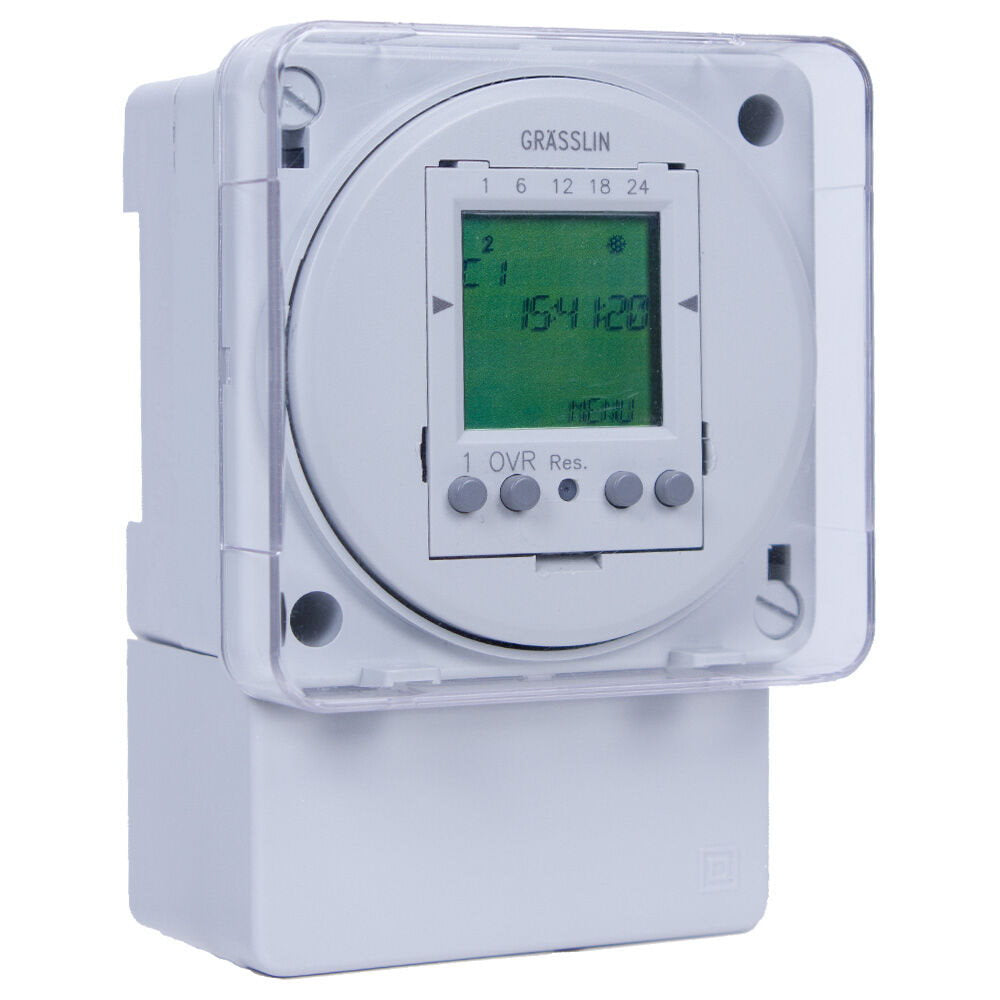

Intermatic FM1D50A-120 24-Hour or 7-Day 120V Electronic Surface/DIN Rail Mount Module, 16A, 50 Setpoint Programs, SPDT



Features:

  • 24-Hour or 7-day applications
  • 50 Setpoint programs
  • Two preset adjustable block programs
  • Easy-to-follow menu driven programming
  • Manual override with status indication
  • Battery backup
  • Large LCD
  • Seven available languages: English, German, French,Italian, Spanish, Portuguese and Dutch
  • Auto Daylight Saving Time feature
  • A & E Models come with clear dust cover

Applications:

  • Aeration
  • Air Movement & Ventilation
  • Generator Exercising
  • Refrigeration Merchandiser
  • Septic Treatment

Specifications:

Backup Type Battery Input Voltage Range(s) 120 VAC, 50/60 Hz
Mounting Options DIN Rail, Surface Number Of Circuits 1
Operation Mode 24 hour, 7-day Switch Type SPDT
Minimum ON/OFF Times 1 min Maximum ON/OFF Times 23 hours, 59 minutes
Maximum Power Consumption (W) 1.4 W Mechanism Type Digital/Electrical
ON/OFF Operations 350 Resistive (NO) 16 A, 277 VAC
Warranty Period 1-Year limited Wiring Option Screw terminals for #24 to #10 AWG wire
Backup Protection Time 3 years Battery Service Type Non-rechargeable, Non-replaceable
Category Timer Controls Web Daylight Savings Adjustment Automatic
Has Clear Dust Cover Yes Has Manual Override Status Indication Yes
Magnetic Ballast (NO) 12 A, 120 VAC, 8 A, 240 VAC Menu Languages German, English, French, Italian, Spanish, Portuguese, Dutch
Motor (NO) 1/2 HP, 120 VAC, 1 HP, 240 VAC Operating Humidity 0-95% RH, Non-condensing
Pilot Duty (NC) 360 VA, 120 VAC, 8 A, 24 VDC Pilot Duty (NO) 360 VA, 120 VAC, 720 VA, 240 VAC
Resistive (NC) 16 A, 277 VAC RoHS Certification Yes
Tungsten (NO) Load Ratings 600 W, 120 VAC, 1000 W, 240 VAC Voltage Selection Type Voltage Specific
Wire Size Max #10 AWG Wire Size Min #24 AWG
Operating Temperature Max (°C) 55 Operating Temperature Max (°F) 131
Operating Temperature Min (°C) -25 Operating Temperature Min (°F) -13
Product Depth (in) 2.06 Product Depth (mm) 52
Product Height (in) 4 Product Height (mm) 102.5
Product Width (in) 2.83 Product Width (mm) 72
Unit Carton Height (in) 3.25 Unit Carton Length (in) 4.75
Unit Carton Weight (lb) 0.529 Unit Carton Width (in) 3.25
