Intermatic - FM1D14A-AV - 24-Hour or 7-Day 120-277V Electronic Surface/DIN Rail Mount Module

IntermaticSKU: FM1D14A-AV

Price:
Sale price $159.53
Stock:
Sold out

Description

Spec Sheet  Install Manual

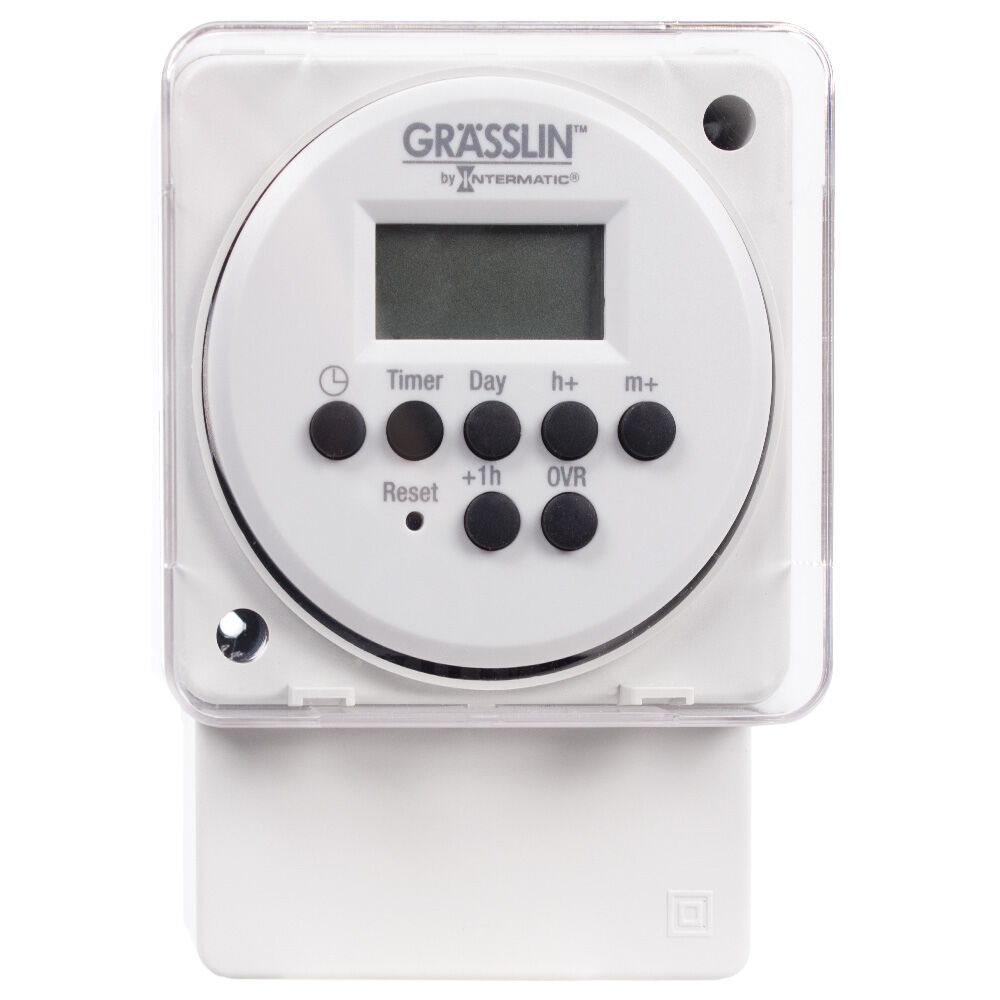

Intermatic FM1D14A-AV 24-Hour or 7-Day 120-277V Electronic Surface/DIN Rail Mount Module, 15A, 14 Setpoint Programs, SPDT

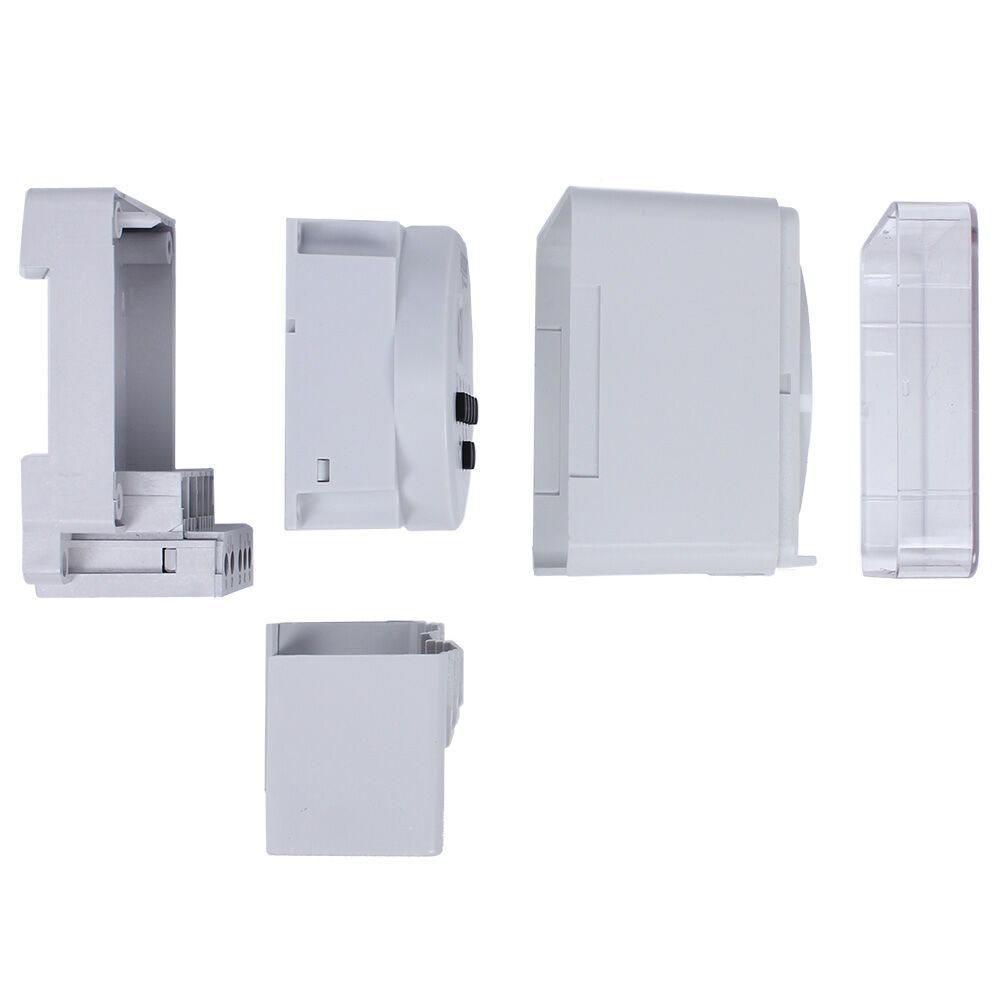

The FM1D14 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Features:

  • 24-Hour or 7-day applications
  • 14 Setpoint programs
  • Easy to program
  • Manual override with status indication
  • Self-recharging battery with backup protection up to 2500-hours
  • LCD display
  • 5 Preset adjustable block programs
  • A & E models come with clear dust cover

Applications:

  • Aeration
  • Air Movement & Ventilation
  • Generator Exercising
  • Refrigeration Merchandiser
  • Septic Treatment

Specifications:

Backup Type Battery Input Voltage Range(s) 120-277 VAC, 50/60 Hz
Mounting Options DIN Rail, Surface Number Of Circuits 1
Operation Mode 24 hour, 7-day Switch Type SPDT
Minimum ON/OFF Times 1 min Maximum Power Consumption (W) 1.4 W
Mechanism Type Digital/Electrical ON/OFF Operations 98
Warranty Period 1-Year limited Wiring Option Screw terminals for #24 to #10 AWG wire (A models)
Application Compatibilities LED Backup Protection Time 2500 Hours
Battery Service Type Self-recharging Category Timer Controls Web
Daylight Savings Adjustment Manual Electronic Ballast (NO) 4.9 A, 120 VAC
General Purpose (NC) 15 A, 277 VAC General Purpose (NO) 15 A, 277 VAC
Has Manual Override Status Indication Yes Magnetic Ballast (NC) 8 A, 120 VAC
Magnetic Ballast (NO) 8 A, 277 VAC Motor (NC) 1/2 HP @ 120/240 VAC, 10 FLA, 60 LRA @ 250 VAC
Motor (NO) 1/2 HP @ 120 VAC, 1 HP @ 250 VAC, 10 FLA, 60 LRA @ 250 VAC Operating Humidity 0-95% RH, Non-condensing
Pilot Duty (NO) B300 Resistive (NC) 12 A, 24 VDC
RoHS Certification Yes Tungsten (NO) Load Ratings 1000 W, 120 VAC
Voltage Selection Type Voltage Specific Wire Size Max #10 AWG
Wire Size Min #24 AWG Operating Temperature Max (°C) 55
Operating Temperature Max (°F) 131 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 2.06
Product Depth (mm) 52 Product Height (in) 4
Product Height (mm) 102.5 Product Width (in) 2.83
Product Width (mm) 72 Unit Carton Height (in) 3.25
Unit Carton Length (in) 4.75 Unit Carton Weight (lb) 0.529
Unit Carton Width (in) 3.25
