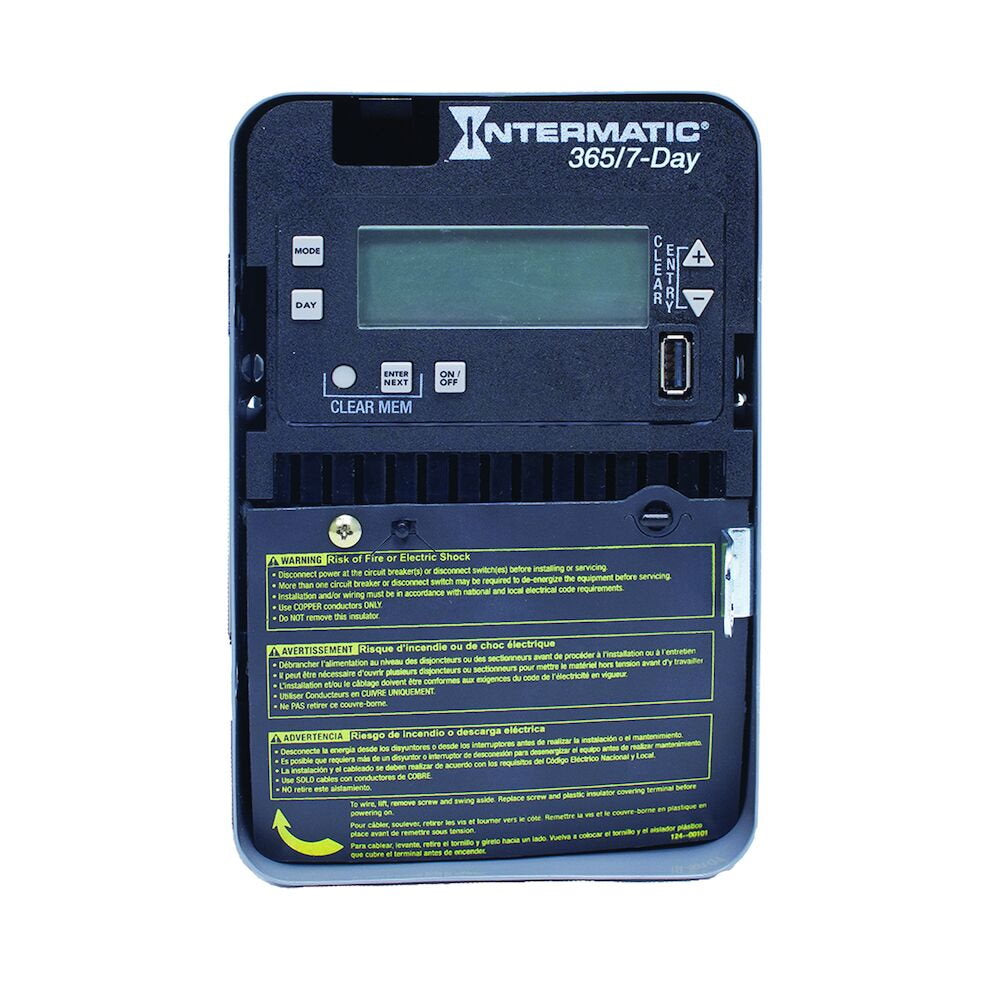

Intermatic - ET2715C - 7-Day/365 Day 1-Circuit Electronic Control, 120-277 VAC

IntermaticSKU: ET2715C

Price:
Sale price $269.79
Stock:
Sold out

Description

Spec Sheet  Install Manual

Intermatic ET2715C 7-Day/365 Day 1-Circuit Electronic Control, 120-277 VAC, SPDT, Indoor Metal Enclosure

The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Features:

  • 100-hour supercapacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz
  • Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero-crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy

    Applications:

    • Indoor Lighting Control
    • Machinery & Pump Controls
    • Timing/Scheduling ON/OFF

    Specifications:

    Backup Type Supercapacitor Input Voltage Range(s) 120-277 VAC, 60 Hz
    Maximum ON/OFF Operations 96 Number Of Circuits 1
    Operation Mode 7-day Switch Type SPDT
    Enclosure Type Indoor type 1 metal Minimum ON/OFF Times 1 min
    Operation Features Holiday Electronic Series ET2000 Series
    Maximum ON/OFF Times Indefinite Maximum Power Consumption (W) 3 W
    ON/OFF Operations 96 Warranty Period 2-Year limited
    Wiring Option Terminals Application Compatibilities LED
    Backup Protection Time 100 Hour Backup Restoration Time 30 Minutes
    Category Electronic Controls Web Daylight Savings Adjustment Automatic
    Electronic Ballast LED 10 A Electronic Ballast Load Ratings NO Ranges 10 A, 120/277 VAC
    Inductive Load Ratings NC Ranges 10 A, 120-240 VAC Inductive Load Ratings NO Ranges 20 A, 120-240 VAC
    Knockout Dimensions Back (1) combination 1/2" - 3/4" Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
    Magnetic Ballast (NC) Range(s) 3 A, 120-277 VAC Magnetic Ballast (NO) Range(s) 20 A, 120-277 VAC
    Motor Load Ratings NC Ranges 1/4 HP, 120 VAC; 1/2 HP, 240 VAC Motor Load Ratings NO Ranges 1 HP, 120 VAC; 2 HP, 240 VAC
    Resistive (NC) Range(s) 10 A, 28 VDC; 10 A, 120-240 VAC Resistive (NO) Range(s) 20 A, 28 VDC; 20 A, 120-240 VAC
    Voltage Selection Type Auto Voltage Wire Size Max #8 AWG
    Wire Size Min #14 AWG Operating Temperature Max (°C) 40
    Operating Temperature Max (°F) 104 Operating Temperature Min (°C) -40
    Operating Temperature Min (°F) -40 Product Depth (in) 3.4375
    Product Depth (mm) 87.3 Product Height (in) 7.875
    Product Height (mm) 200 Product Width (in) 5.125
    Product Width (mm) 130.2 Unit Carton Height (in) 8
    Unit Carton Length (in) 5.236 Unit Carton Weight (lb) 2.75
    Unit Carton Width (in) 3.15
