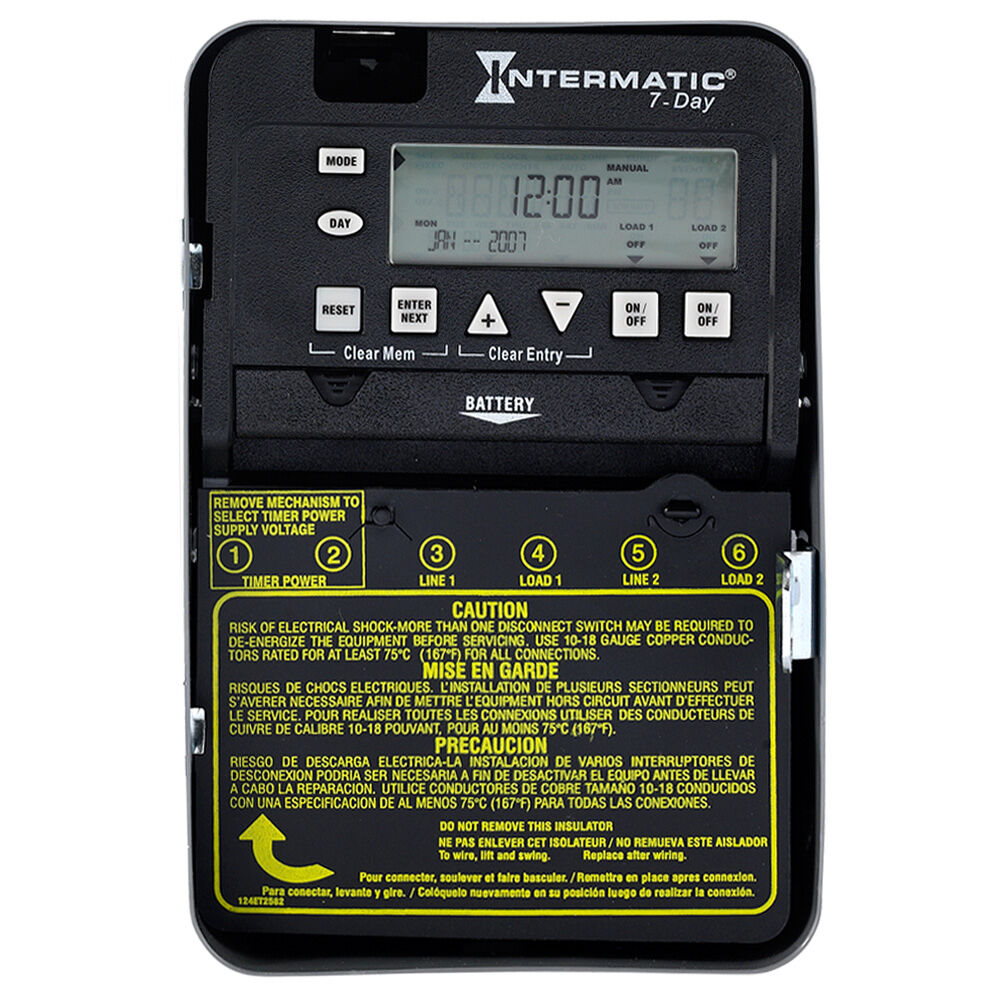

Intermatic ET1725C 7-Day 2-Circuit Electronic Control, 120-277 VAC, 2-SPST, Indoor Metal Enclosure
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.
Features:
- Selector switch to determine input voltage between 120-277 VAC
- Up to 28 events total
- To-the-minute accuracy
- Temporary override or permanent manual override
- Automatic Daylight Saving Time adjustment
- Astronomic models enable dusk-to-dawn scheduling
Applications:
-
Indoor Lighting Control
-
Machinery & Pump Controls
-
Timing/Scheduling ON/OFF
Specifications:
Backup Type | Battery | Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
Maximum ON/OFF Operations | 28 | Number Of Circuits | 2 |
Operation Mode | 7-day | Switch Type | 2xSPST, 1xDPST or Pulse |
Enclosure Type | Indoor type 1 metal | Minimum ON/OFF Times | 1 min |
Electronic Series | ET1700 Series | Maximum ON/OFF Times | Indefinite |
Maximum Power Consumption (W) | 6 W | Minimum Pulse Time | 2 sec |
ON/OFF Operations | 28 | Warranty Period | 1-Year limited |
Wiring Option | Terminals | Battery Service Type | Field Serviceable |
Battery Type | AAA | Category | Electronic Controls Web |
Daylight Savings Adjustment | Automatic | Electronic Ballast Load Ratings Ranges | 1 A, 120-277 VAC |
Inductive Load Ratings NO Ranges | 30 A, 120/240 VAC | Knockout Dimensions Back | (1) combination 1/2" - 3/4" |
Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" | Magnetic Ballast (NO) Range(s) | 20 A, 120-277 VAC |
Maximum Pulse Time | 2 sec | Motor Load Ratings NO Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC |
Motor Three Phase Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC | Rating | General Purpose |
Resistive (NO) Range(s) | 20 A, 28 VDC; 30 A, 120/240 VAC | Resistive Load Ratings Ranges | 20 A, 28 VDC; 30 A, 120/240 VAC |
Timer Type | Digital | Tungsten (NO) Range(s) | 5 A, 120/240 VAC |
Tungsten Range(s) | 5 A, 120-240 VAC | Voltage Selection Type | Selector Switch |
Wire Size Max | #8 AWG | Wire Size Min | #14 AWG |
Operating Temperature Max (°C) | 40 | Operating Temperature Max (°F) | 104 |
Operating Temperature Min (°C) | -40 | Operating Temperature Min (°F) | -40 |
Product Depth (in) | 3.4375 | Product Depth (mm) | 87.3 |
Product Height (in) | 7.875 | Product Height (mm) | 200 |
Product Width (in) | 5.125 | Product Width (mm) | 130.2 |
Unit Carton Height (in) | 3.131 | Unit Carton Length (in) | 8.001 |
Unit Carton Weight (lb) | 2.844 | Unit Carton Width (in) | 5.251 |
