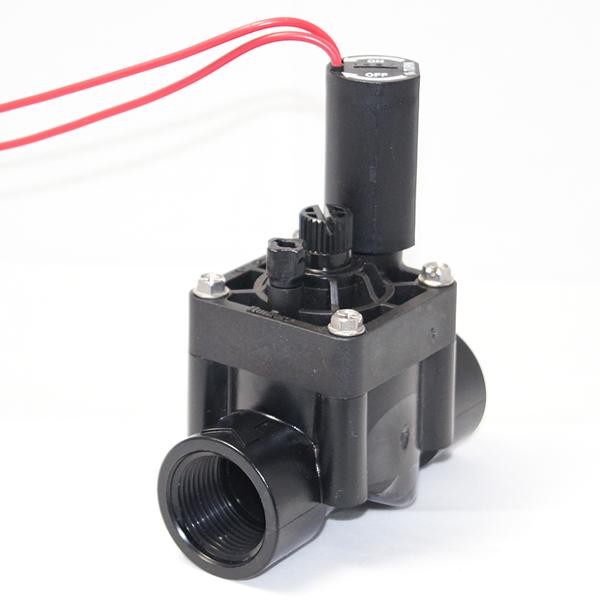

Hunter Industries - PGV101GS 1 Inch Residential and Light Commercial Globe Valve, Slip x Slip

Hunter IndustriesSKU: PGV-101G-S

Price:
Sale price $19.94
Stock:
In stock

Description

This hard working, heavy-duty valve offers the best features of Hunter’s top-of-the-line valves. Built with enough durability to handle the rigors of most residential and light commercial sites, the PGV is available in an array of configurations. For smaller landscape applications, the PGV is available in four 1" body configurations: angle, globe, male x male, or male x barb design. In turn, each model is available in either a flow control or non-flow control version. For larger landscape applications, the PGV comes in both 1-1/2" and 2" globe/angle models (with flow control). All models feature durable high-grade construction and a rugged diaphragm with support to prevent stress failure.

Key Features:

  • Inlet Diameter: 1 inch
  • Height: 5 inches
  • Length: 4 1/2 inches
  • Width: 2 1/2 inches
  • Flow rate: 0.2 to 40 GPM
  • Recommended pressure range: 20 to 150 PSI

Operating Specifications:

  • Flow rate:
    • PGV-151: 20 to 120 GPM
    • PGV-201: 20 to 150 GPM
  • Recommended pressure range: 20 to 150 PSI

Solenoid Specifications:

  • 24 VAC solenoid
    • 350 mA inrush, 190 mA holding, 60 HZ
    • 370 mA inrush, 210 mA holding, 50 HZ

Factory Installed Options:

  • Valve without solenoid
  • DC latching solenoid

User Installed Options:

  • Solenoid conduit cover (P/N 464322)
  • DC latching solenoid (P/N 458200)
  • Accu-Sync pressure regulator
  • Reclaimed water ID handle for PGV-101 models (P/N 269205) and PGV-151/201 models (P/N 607105)
