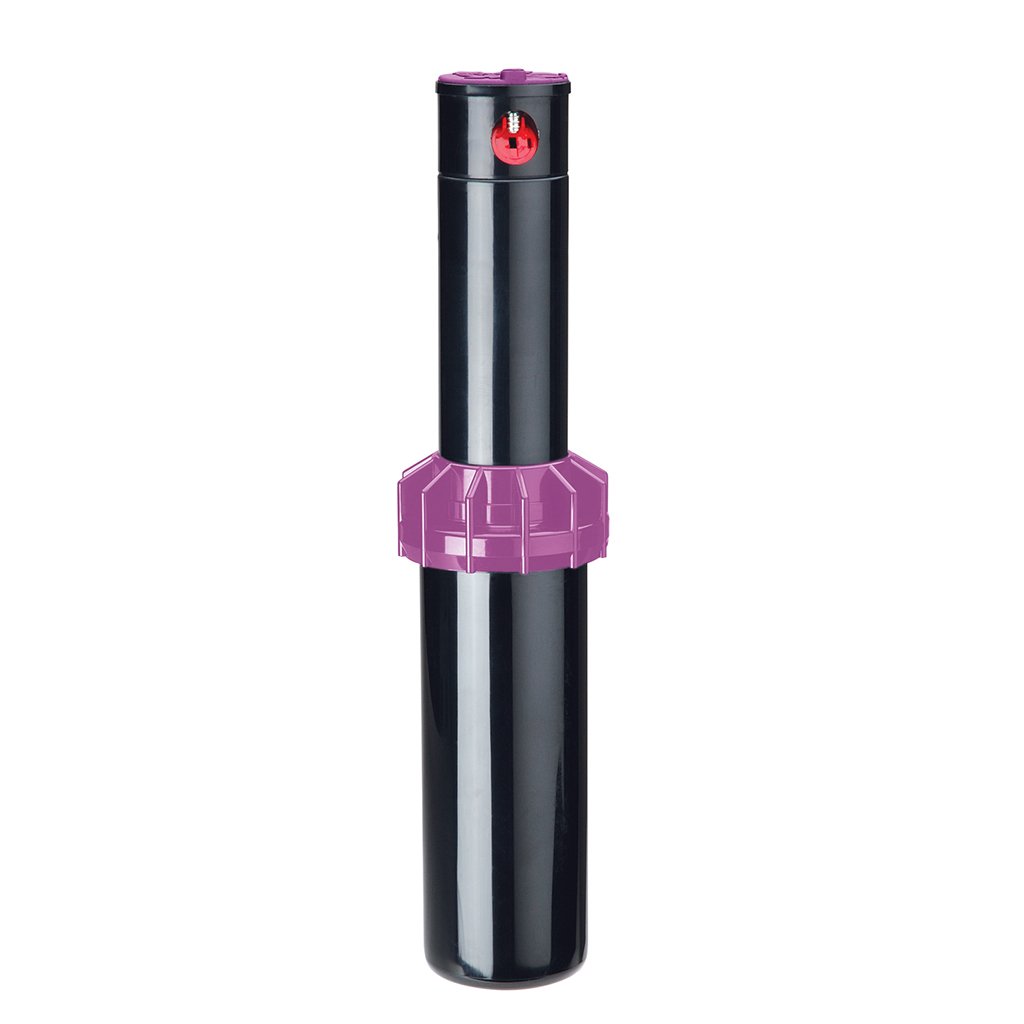

K-Rain - RPS75-RCW Series 3/4" ROTOR RCW

K-RainSKU: RPS75-RCW

Price:
Sale price $13.98
Stock:
In stock

Description

K-Rain’s RPS® 75 gear drive rotor is designed for residential and light commercial applications. The reliable, durable design is the foundation of K-Rain’s RPS Rotor line. This workhorse is built to perform trouble-free for years and has unequalled value in the market. Our patented reversing mechanism, on which all rotors are based upon today, assures continuous reverse and return. With K-Rain’s wide selection of standard and low angle nozzles, the RPS 75™ provides even water distribution.

A direct replacement for the Hunter PGP® rotor, with our time-proven, patented reversing mechanism (the same used in the Hunter PGP®), the RPS75® drops directly in an installed Hunter PGP® can.

Worldwide regulations frequently require reclaimed water usage sites to use components identified with a purple cap or collar.

FEATURES AND BENEFITS:

  • Direct Replacement for Hunter® PGP®.
  • Right Position Start – Rotor rotates counterclockwise from fixed right start position.
  • Riser Fits in Existing Hunter® PGP® cans – Simply unscrew the existing riser from the PGP® can and replace with the RPS® 75 riser.
  • Top Adjustment – No training necessary – the RPS® 75 has the same adjustment procedure as the Hunter® PGP®.
  • Full and Part Circle Rotation – Provides a full range of adjustment from 40° to 360°.
  • Non-flushing Wiper Seal – Reduces leaks caused by debris trapped under seal.
  • 3/4" (1,9 cm) Inlet – Replaces all standard rotors.
  • Ideal for Low Flow Applications.
  • Universal Adjustment Tool – Compatible with existing Hunter® products.
  • Rubber Cover – Seals out dirt and increases durability.
  • Wide Selection of Nozzles – Including standard and low angle, provides flexibility in system design.
  • Five Year Limited Warranty


SPECIFICATIONS:

  • Inlet: 3/4" (1,9 cm) Threaded NPT
  • Arc Adjustment Range: 40° – 360°
  • Flow Range: .75 – 8.2 GPM (2,6 – 32,6 LPM)
  • Pressure Rating: 30 – 70 PSI (2,1 – 4,8 bars)
  • Precipitation Rate: .16 – .70 in/hr (4 – 18 mm/hr) (Depending on Spacing and Nozzle Used)
  • Overall Height (Popped Down): 7 3/8" (19,7 cm)
  • Recommended Spacing: 25' – 45' (7,6 – 13,7 m)
  • Radius: 22' – 51' (6,7 – 15,5 m)
  • Nozzle Trajectory: 26°
  • Low Angle Nozzle Trajectory: 11°
  • 8 Standard and 4 Low Angle Nozzles Included
  • Riser Height: 4" (10,2 cm)
